How to Install: Take out your stock license plate light at the back of your car. Fit the camera to where the stock license plate light was. Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power Connect the power of the camera to your reverse lights – red wire to positive and black wire to negative. Connect the video cable of the camera to the extension cord. Connect the extension cord to your car monitor/navigation system.

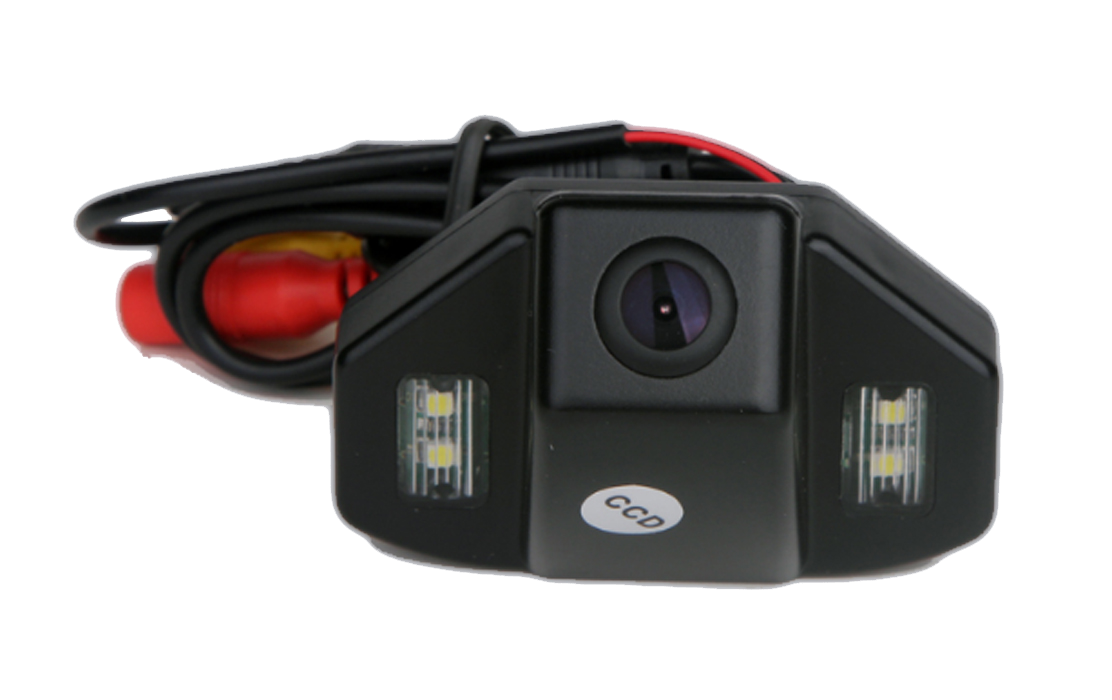

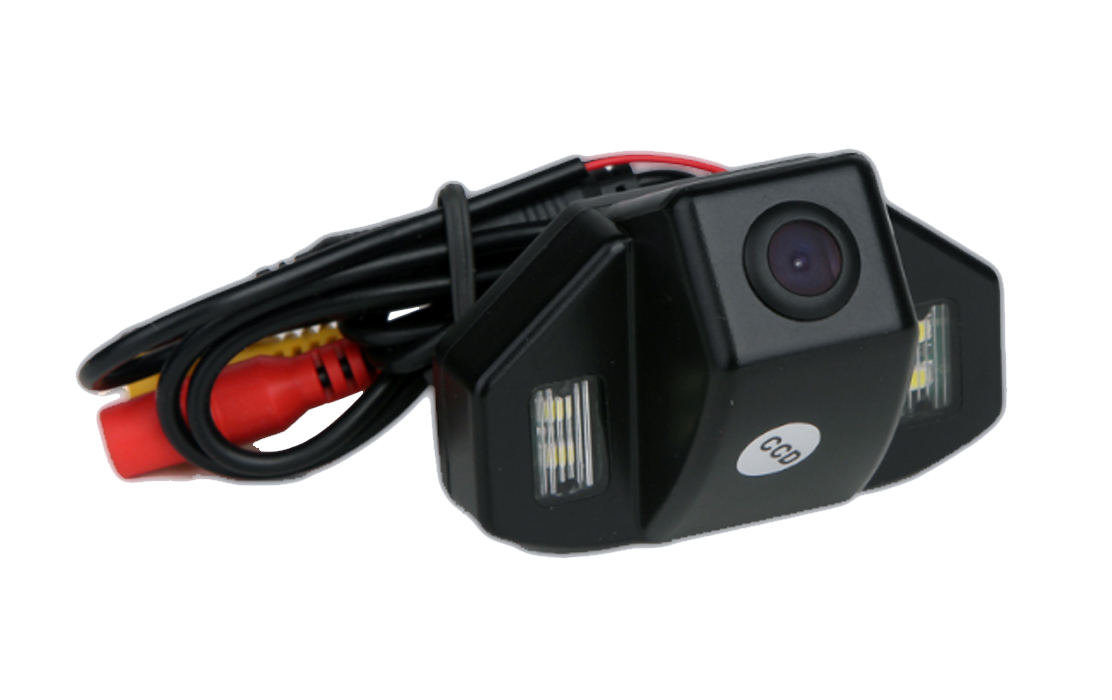

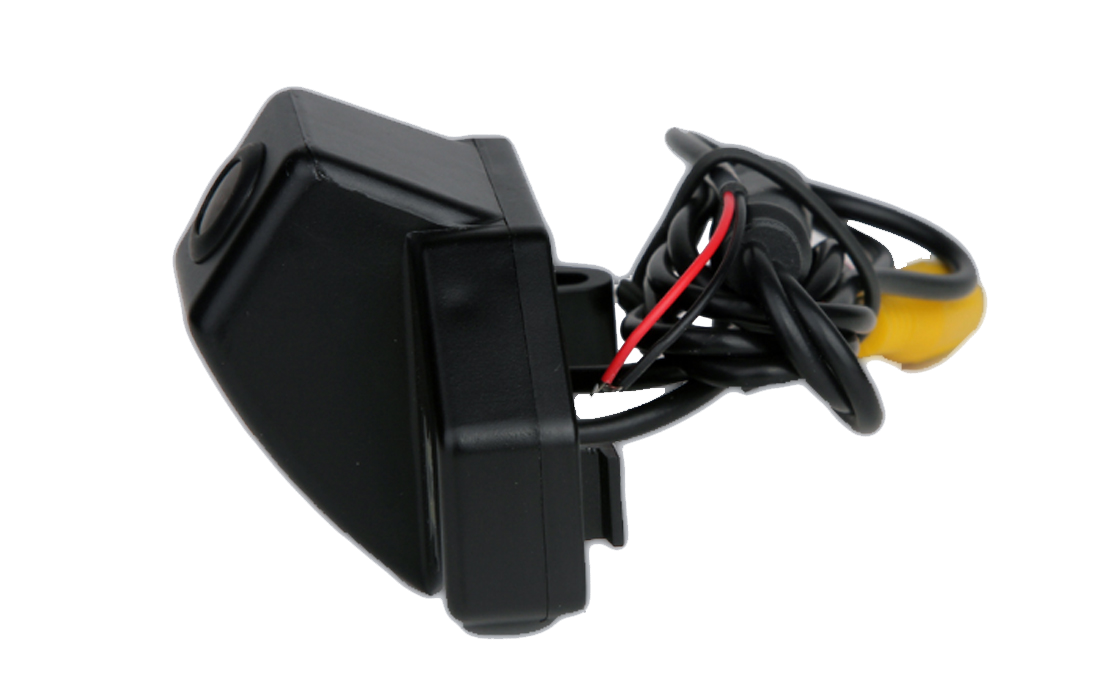

Designed Specifically for HONDA CRV
Night Vision – IR 0.1 LUX
Simple to Install (see steps below) – no drilling
Automatic Exposure/Gain control
Auto White balance control
lens angle:170 degrees Resolution: 420 TV Lines
Shutter speed: 1/60s-20us
Minimum illumination: 0.1Lux
Operating temperature: -40 to +80 RH95%Max
TV System: NTSC/PAL/SECAM
NOTE: Pictures are for visualization only and may vary on actual items.
