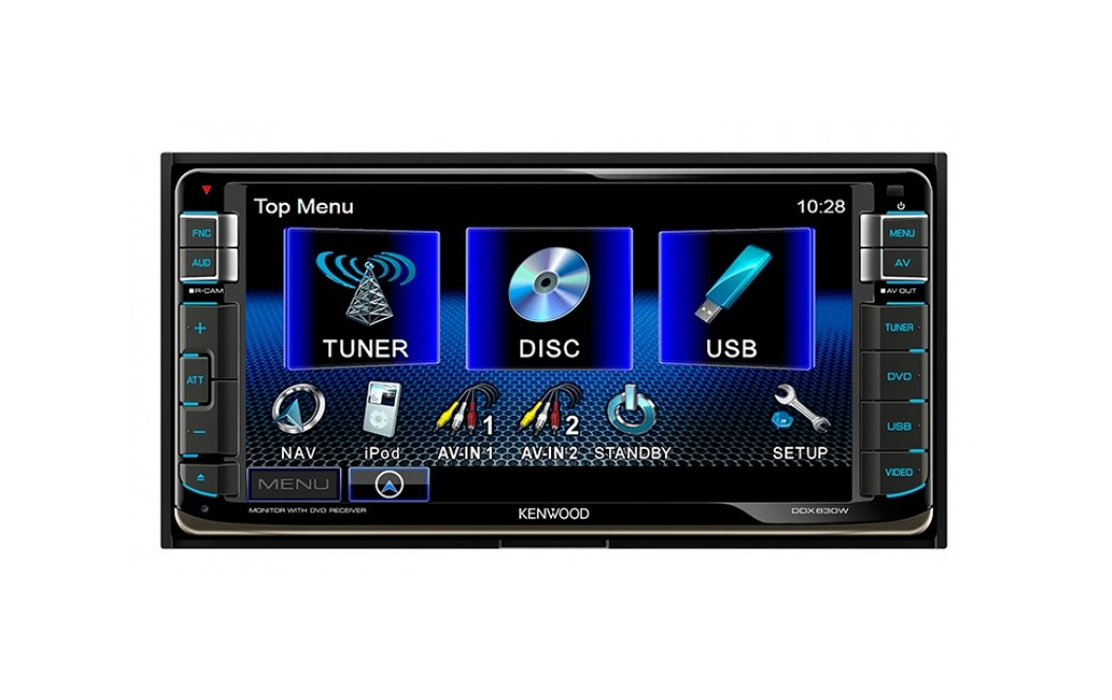

Kenwood DDX 630W CAR DVD

Php 22,000.00
Kenwood DDX630W Perfect fit wity all Toyota cars, the ultimate in sound experience. The 200mm DDX 630W fits seamlessly requiring no extra side brackets, ensuring an elegant and complete finish that matches the overall dashboard design.
INQUIRY FORM

S.R.P: Php 24,000.00

Free Installation. Credit cards accepted.

Package:  Choose an add-on at special discounted prices

Option 1: Add a night vision camera for Php 3,500.00

Option 2: Add a Pair of Headrest Monitors for rear passenger for only Php 9,500.00 instead of Php 11,500.00

Option 3: Add an advanced Kenwood Navigation unit for Php 18,000.00 with complete Philippine map.

Option 4: Add a tv tuner Php 6,500.00

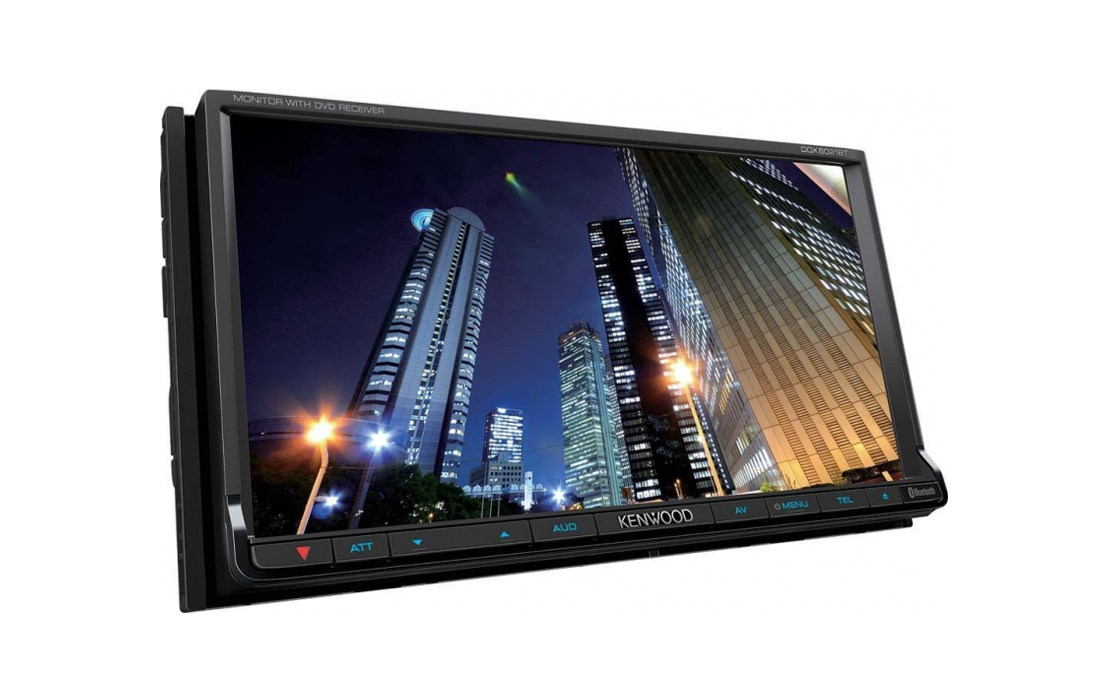

KENWOOD DDX 630W

Kenwood DDX630W Perfect fit wity all Toyota cars, the ultimate in sound experience. The 200mm DDX 630W fits seamlessly requiring no extra side brackets, ensuring an elegant and complete finish that matches the overall dashboard design. Also, you’re able to expand and enhance the sound quality for excellent sound reproduction. Get geared up for an immerse listening experience



SPECIFICATIONS

Monitor Section Picture Size
W x H
6.95 inches(diagonal) wide
156.6mm x 81.6mm
Display System Transparent TN LCD panel
Drive System TFT active matrix system
Number of Pixels 1,152,000
800H x 480V x RGB
Back Lighting LED
DVD Section D / A Converter 24Bit
Audio Decoder Linear PCM
Dolby Digital
dts
MP3/WMA/AAC/WAV
Video Decoder MPEG1/MPEG2/DivX
Wow & Flutter Below Measurable Limit
Frequency Response 96k Sampling 20 – 22,000Hz
48k Sampling 20 – 22,000Hz
44.1k Sampling 20 – 20,000Hz
Total Harmonic Distortion (1kHz) 0.010%
S/N Ratio (db) 99dB(DVD-Video 96k)
Dynamic Range 98dB(DVD-Video 96k)
DISC Format DVD-Video/VIDEO-CD/CD-DA
Sampling Frequency 44.1kHz/48kHz
96kHz
Quantifying Bit Number 16/20/24bit
USB I/F Section USB Standard USB2.0 Full Speed
File System FAT 16 / 32
Maximum Power Supply Current DC5V 1A
D/A Converter 24Bit
Audio Decoder MP3/WMA/AAC/WAV
Video Decoder MPEG1/MPEG2/DivX
SD Section Compatible File System
Maximum Memory Capacity
Data Transfer Rate
Audio Decoder
Audio Decoder
Bluetooth Section Version
Frequency
Output Power
Maximum Communication Range
DSP Section Graphics Equalizer BAND
Frequency (Hz) (BAND1-7 (DDX8036BT: BAND1-13))
Gain (dB)
2Way X’Over HIGH PASS FILTER Frequency
SLOPE
LOW PASS FILTER Frequency
SLOPE
Time Alignment Front / Rear / Sub-Woofer
Center
Position
FM Frequency Range (Frequency Step) 87.5MHz – 108.0MHz (50kHz)
Usable Sensitivity 9.3dBf
S / N (db) 70dB(MONO)
Selectivity Over65dB(±400kHz)
Stereo Separation 40dB(1kHz)
AM Frequency Range
(Frequency Step)
LW:153 – 279kHz(9kHz)
MW:531 – 1611kHz(9kHz)
Usable Sensitivity MW … 25μV / LW … 45μV
DAB Frequency Range
Sensitivity
Sensitivity
Video Color System of External Video Input NTSC/PAL
External Video Input Level
(RCA /Mini jacks)
1Vp-p / 75 Ohms
External Audio Max Input Level
(RCA /Mini jacks)
2V / 25k Ohms
Video Output Level
(RCA /Mini jacks)
1Vp-p / 75 Ohms
Audio Output Level
(RCA /Mini jacks)
1.2V / 10k Ohms
Analog RGB Input 0.7Vp-p / 75 Ohms
Audio Maximum Power 50Wx4
Full Bandwidth Power
(at less than 1%THD)
22Wx4
Preout Level (V) 4V / 10k Ohms
Preout Impedance (Ohms) =< 600 Ohms
Speaker Impedance (Ohms) 4-8 Ohms
TONE BASS 100Hz ±8dB
MIDDLE 1kHz ±8dB
TREBLE 12.5kHz ±8dB
External SW Maximum Power Supply Current
Navigation Section Receiver
Receiving Frequency
Acquisition Times
Update Rate
Accuracy
Positioning Method
Antenna
General Operating Voltage 14.4V(10.5V to 16V)
Maximum Current Consumption 10A
Installation Size (W x H x D) 178mm x 100mm x 160mm
Operational Temperature Range -10°C to +60°C
Weight (Main Unit) 2.6Kg
