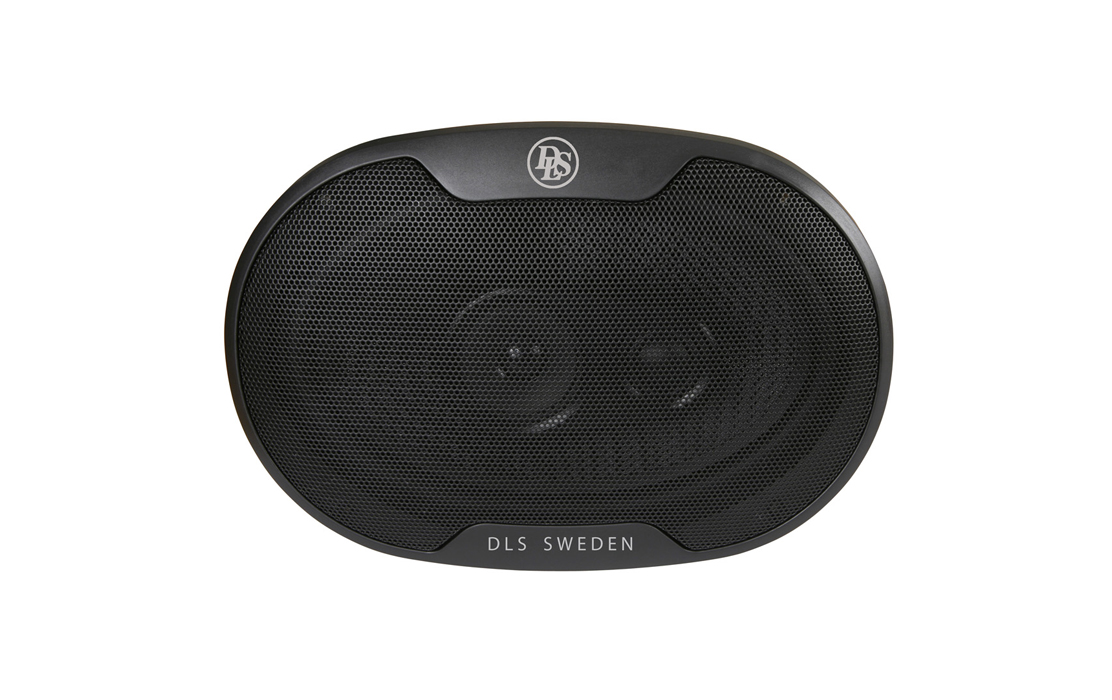

Dls M369 3-way 6 x 9 inches

Php 8,500.00
Performance series M369 is a 6 x 9 ” 3-way triaxial with 2” mid driver and a 25 mm silk dome tweeter. The bass driver has a cone of woven glass fibre and rubber edge. Together with a powerful magnet system it guarantees a good bass control. Grilles are included.
INQUIRY FORM

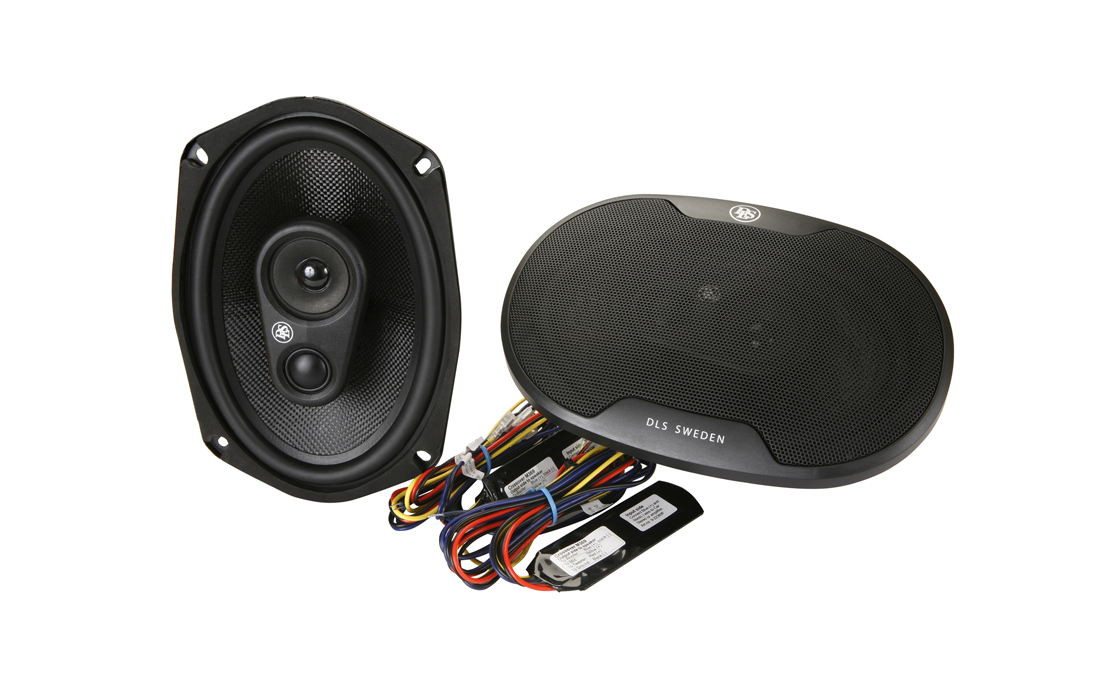

Performance series M369 is a  6 x 9 ” 3-way triaxial with 2” mid driver and a 25 mm silk dome tweeter.



The bass driver has a cone of woven glass fibre and rubber edge. Together with a powerful magnet system it guarantees a good bass control. Grilles are included.



Small filter boxes with a 12 dB slope crossover to the tweeter and 6 dB to bass and midrange.



Specifications



Woofer size 6″ x 9″ (165 x 236 mm

Tweeter 25 mm (1″) tweeter, 45 mm (2″) midrange

Power handling capacity 80 W RMS / 120 W max / 200 W peak power

Impedance 4 ohm

Frequency range 50 – 20.000 Hz

Sensitivity 89,3 dB (1W/1m)

Crossover External filter with 12 and 6 dB slope

Outer diameter of woofer 165 x 236 mm

Magnet size 100 mm (3,94″)

Cone material Woven glass fibre with rubber surround

Mounting depth 86 mm ( 3,38″)

Mounting hole 155 x 221 mm (6,1 x 8,7″)

Size of filter box External cable filter

EAN Bar code 7331644820109
