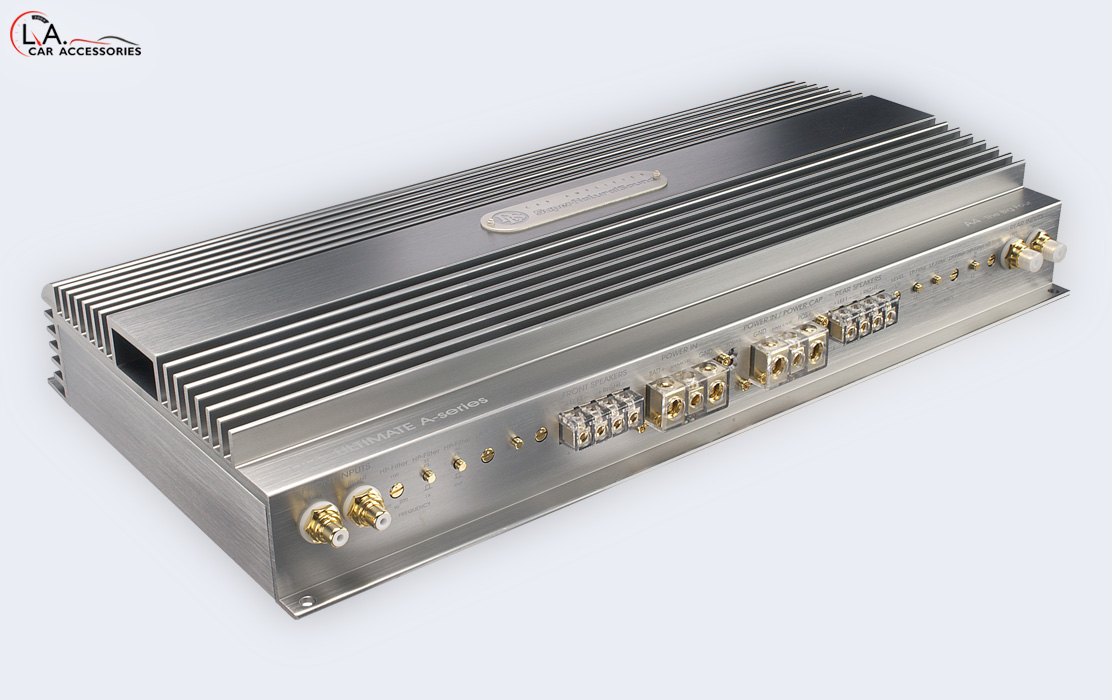

DLS ULTIMATE A4 – The Big Four 4-channel amplifier ULTIMATE series A4 is a powerful 4-channel amplifier. The amplifier is 1 ohm stable and provides an output power of 4 x 85 Watts with 4 ohm stereo and 2 x 250/400 Watts with 4/2-ohm mono bridge-connection. Built-in variable 50-125 Hz low-pass filter for subwoofer on all channels.
In addition, a built-in variable 20-200 Hz high-pass filter that can be used as a subsonic filter or high-pass filter for front systems.

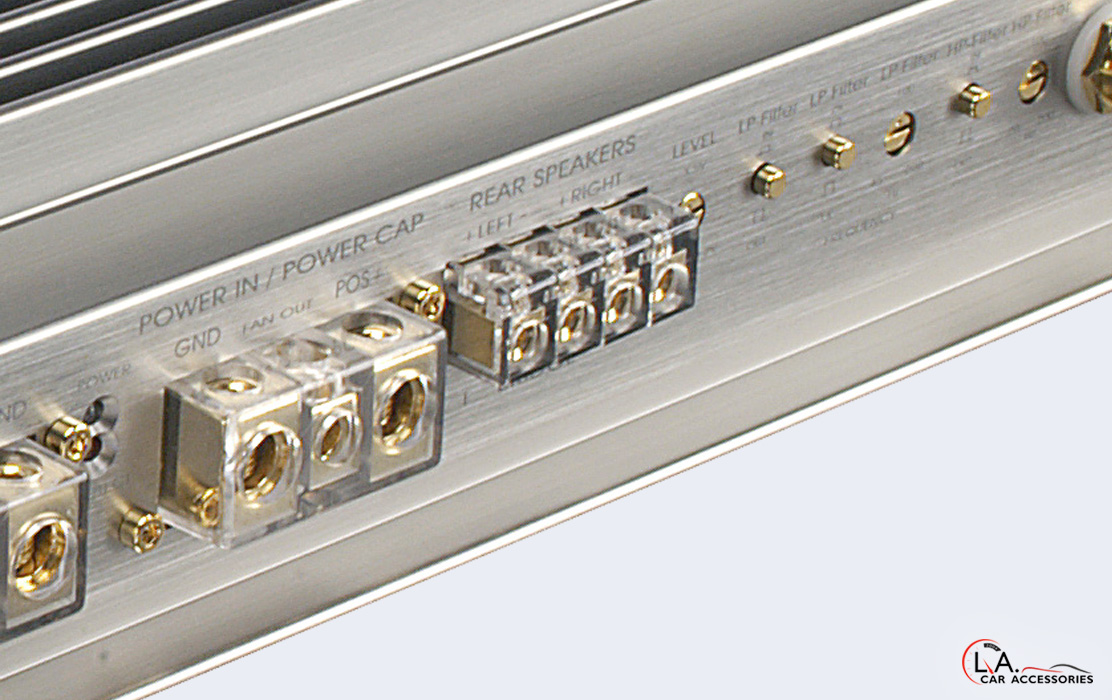

The frequency of the filter can be switched so that two of the channels can be used for mid-range woofer. Dual power terminals where you can connect dual power feeds and DLS Power Cap.
Output for electronically controlled fans.
RMS output power per channel at 13.8 volts, 20 Hz – 20 kHz, <0.1% THD.
Number of Channels 4
output into 4 ohm 4 x 85 W output into 2 ohms 4 x 145 W
output power in 1 ohm 4 x 220 W
Mono bridge mode 4 ohm 2 x 250 W
-Bridge-Mono Mode 2 Ohm 2 x 400 W
damping factor> 200
S / N ratio, A-weighted> 100 dB
frequency range 10 Hz – 50 kHz
input impedance, high N / A
Input sensitivity 0,2 – 7 V
input impedance> 10 kOhm
Filter channel A & B LP: 50 to 125 Hz HP: 20-200 Hz / 60 to 600 Hz
C & D Canal filter LP: 45 to 200 Hz / 90-400 Hz HP: 20-200 Hz
Low Level Output No
High-level input with auto start no.
Yes Dual DC-inputs
Yes External fan terminal power consumption (standby) 1.5 A
Power consumption (max) 95 A
Dimensions (W x D x H) 465 x 240 x 73 mm (18.30 x 9.45 x 2.87 inches)
Rec Power cable Minimum 4AWG / 21 mm2
Weight 6.6 kg (14.55 lb)
