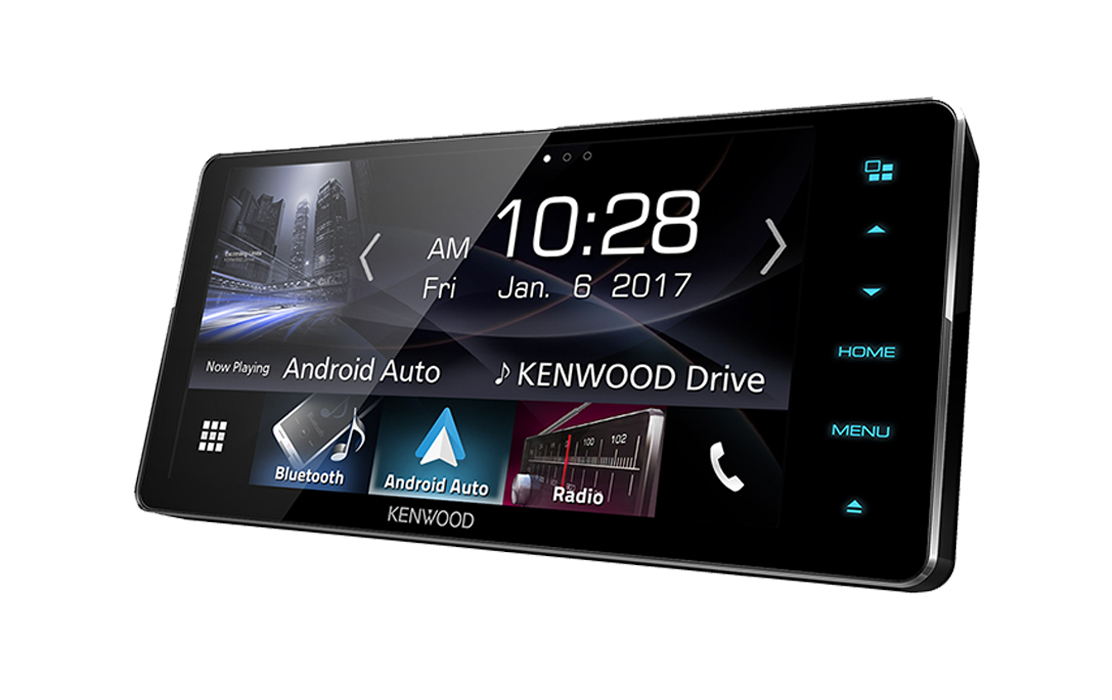

Kenwood DDX917WS Car DVD Stereo

Php 41,000.00
Built-in Wi-Fi®, 7inch WVGA Capacitive Touch Screen AV Receiver
INQUIRY FORM



Product Description

Monitor
Section
Picture size 6.95 inches (diagonal) wide
W x H 156.6 mm x 81.6 mm
Display system TN LCD panel
Drive system TFT active matrix system
Number of pixels 1152000
800H x 480V x RGB
Effective pixels 99.99%
Pixel arrangement RGB striped arrangement
Back lighting LED
DVD
Section
D / A Converter 24 / 32Bit
Audio Decoder Linear PCM
Dolby Digital
MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder MPEG1 / 2, MPEG4 / WMV / H.264 / MKV
Wow & Flutter Below Measurable Limit
Frequency response 96k Sampling 20 – 44,000 Hz
48k Sampling 20 – 22,000 Hz
44.1k Sampling 20 – 20,000 Hz
Total harmonic distortion 1kHz 0.010%
Signal to Noise ratio 90.5dB
Dynamic range 89dB
DISC Format DVD-Video / VIDEO-CD / CD-DA
Quantifying bit number 16/20 / 24bit
USB
I / FSection
USB Standard USB2.0 High Speed
File System FAT 16/32, exFAT, NTFS
Maximum Power Supply Current DC5V = 1.5A
D / A Converter 24 / 32Bit
Audio Decoder MP3 / WMA / AAC / WAV / FLAC / Vorbis / DSD
Video Decoder MPEG1 / 2, MPEG4 / WMV / H.264 / MKV
Miracast
Section
Mode Sink
Copyright protection HDCP2.2
Touch Control UIBC
WIFI IEEE Standard 802.11 b / g / n
Frequency Range 2.4GHz
Channels Auto (1-11ch)
Transfer rates (MAX) 11b: 11 Mbps
11g: 54 Mbps / 11n: 150 Mbps
Output Power 11b: 17dBm ± 2dB
 11g: 15dBm ± 2dB / 11n: 14dBm ± 2dB
Bluetooth
Section
Technology Bluetooth Ver3.0
Frequency 2.402 – 2.480 GHz
Output Power + 4dBm (MAX), 0dBm (AVE) Power Class 2
Maximum Communication range Line of sight approx.10m (32.8ft)
Audio Codec SBC / AAC
Multi Profile Support Multi Profile
Profile HFP (V1.6) (Hands Free Profile)
SPP (Serial Port Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (V1.5) (Audio / Video Remote Control Profile)
PBAP (Phonebook Access Profile)
DSP
Section
Graphics equalizer BAND 13Band
frequency (Hz) (BAND1-7,1-13) 62.5 / 100/160/250/400/630 / 1k / 1.6k / 2.5k / 4k / 6.3k / 10k / 16k
Gain -9 / -8 / -7 / -6 / -5 / -4 / -3 / -2 / -1 / 0/1/2/3/4/5/6/7/8/9 [dB]
2Way X’Over HIGH PASS FILTER frequency Through / 30/40/50/60/70/80/90/100/120/150/180/220/250 [Hz]
SLOPE -6 / -12 / -18 / -24 [dB / Oct.]
LOW PASS FILTER frequency 30/40/50/60/70/80/90/100/120/150/180/220/250 / Through [Hz]
SLOPE -6 / -12 / -18 / -24 [dB / Oct.]
3Way X’Over HIGH PASS FILTER frequency 1k / 1.6k / 2.5k / 4k / 5k / 6.3k / 8k / 10k / 12.5k
SLOPE -6 / -12 [dB / Oct.]
Band PASS FILTER frequency Through /
30/40/50/60/70/80/90/100/120/150/180/220/250 [Hz] 1k / 1.6k / 2.5k / 4k / 5k / 6.3k / 8k / 10k / 12.5 k / Through
SLOPE -6 / -12 [dB / Oct.]
LOW PASS FILTER frequency 30/40/50/60/70/80/90/100/120/150/180/220/250 / Through [Hz]
SLOPE -6 / -12 [dB / Oct.]
Position Front / Rear / Subwoofer Delay 0 – 6.1m (0.01m Step)
Gain -8 to 0dB
Subwoofer Level -50 to + 10dB
FM Frequency Range 87.5MHz – 108.0MHz
(Frequency step) (50kHz)
Usable sensitivity 9.3dBf
‘S / N: 26dB 0.8μV / 75Ω
Quieting sensitivity 15.2dBf
S / N: 46dB 1.6μV / 75Ohms
Frequency response 30Hz – 15kHz
S / N (dB) 75dB (MONO)
Selectivity Over 80dB (± 400kHz)
Stereo separation 45dB (1kHz)
AM Frequency Range
(Frequency step)
531kHz – 1602kHz
(9kHz)
Usable sensitivity 25μV
Video Color system of external video input NTSC / PAL
External video input level (Mini jacks) 1 Vp-p / 75 Ohms
External audio max input level (Mini jacks) 2 V / 25 kOhms
Video Input level (RCA jacks) 1 Vp-p / 75 Ohms
Video Output level (RCA jacks) 1 Vp-p / 75 Ohms
Audio Output level (Mini jacks) 1.2 V / 10 kOhms
Audio Maximum Power Output (Front & Rear) 50Wx4
Typical Power Output (Front & Rear) Full Bandwidth Power
(at less than 1% THD)
22Wx4
Output frequency band 20 – 88,000Hz
Preout level (V) 5V / 10kOhms
Preout impedance (Ω) = <300Ohms
Speaker Impedance (Ω) 4-8 Ohms
General Operating voltage 14.4V (10.5V to 16V)
Maximum Current consumption 15A
Installation Dimensions WxHxD 178mm x 100mm x 160mm
Including the sub panel part 206mm x 104mm x159mm
Operational temperature range -10 ° C to + 60 ° C
Weight Main unit 2.4 Kg

S.R.P. Php 45,000.00

Free installation. Credit cards accepted.



Option : w/ INAV navigation module Php 49,999.00

 S.R.P.  w/ INAV navigation module Php 55,000.00
