7 inch LCD back up sensor with camera
This kit comes with 4 reverse sensors, night vision camera, 7 inch LCD monitor built in to the reverse backing mirror that has an auto dimmer and the beeper to give you advanced notification of the object you are reversing unto. This is the most advanced reverse system today ever made combining all technologies to aid in reversing through blind spots at day and night.
It comes with free installation.
You could use the 7 inch monitor for viewing other video sources as well.

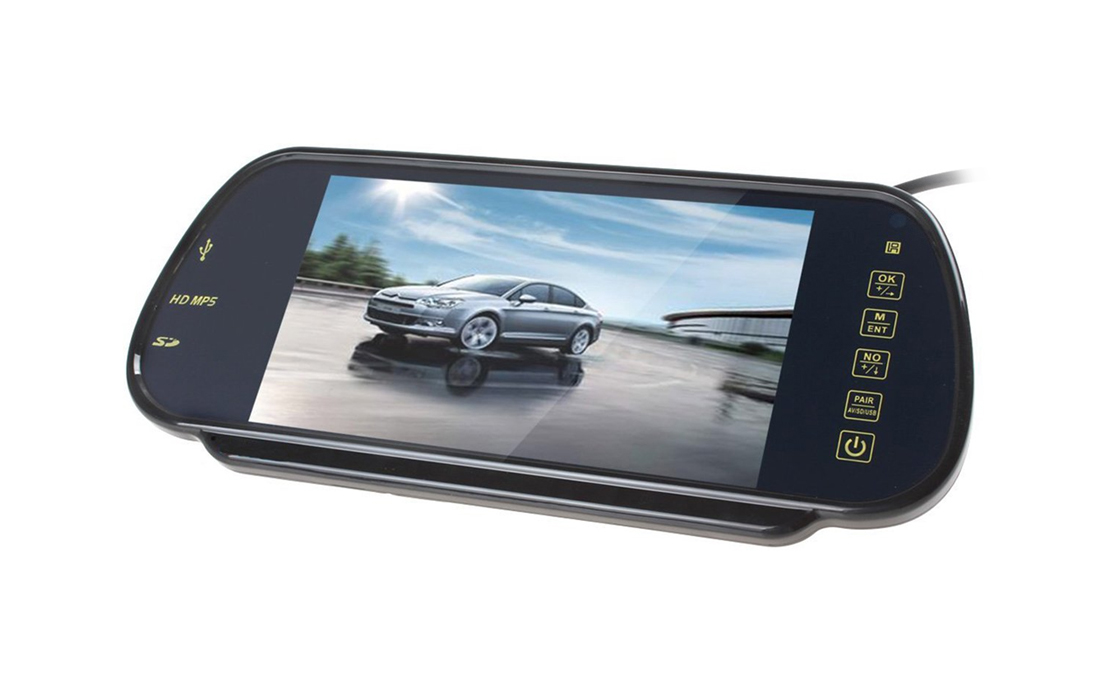

7 inch Rearview Mirror TFT LCD Monitor.
Polarized Monitor For Clear Rear Viewing When Monitor Off.
Support Remote or Touch Button Control.

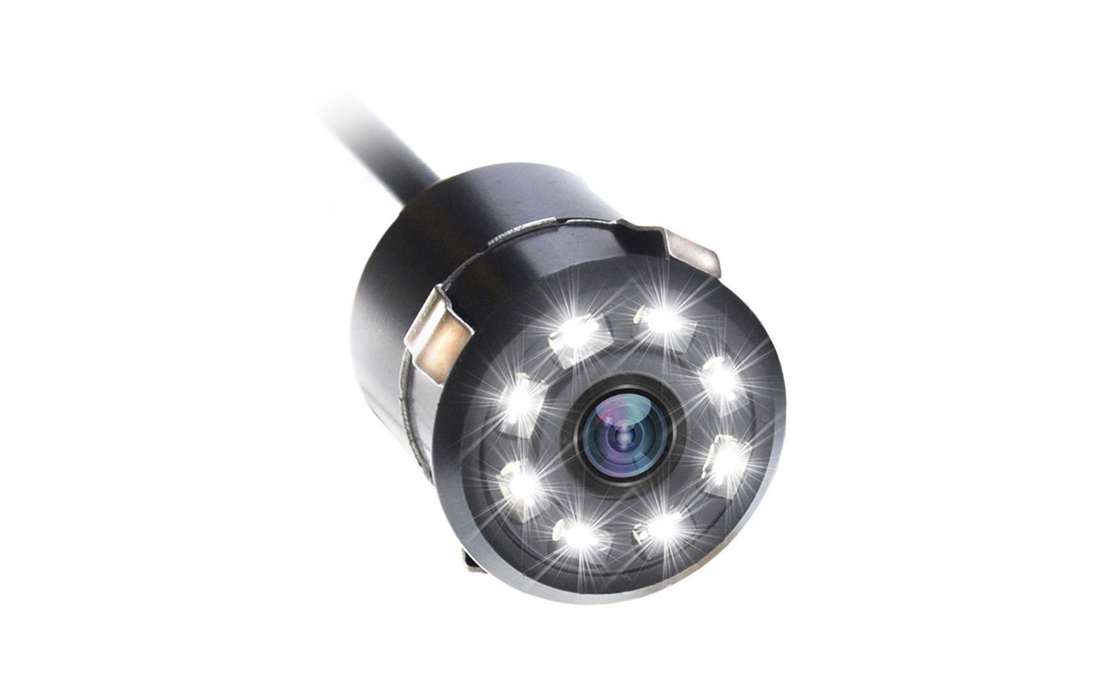

Camera is Waterproof. Camera is equipped with IR lamps for night vision.
Support Automatic Monitor/Camera Feed On While Reversing.
Automatically Parking Sensor On While Reversing, with Voice Distance Alert from Speaker.
Rear View Monitor:
Screen: 7 Inch TFT LCD
Video Color System: NTSC/PAL (Auto Switch)
Display mode: 4:3, 16:9
Resolution: 480 x RGB x 234
Video Input: Dual Video Input
Dimensions: 105 x 250 x 25 mm
Image Device: 1/4 Inch CCD
Color System: NTSC, PAL
Angular Field of View: 75°
Minimum Illumination: 0.0 LUX night vision via IR lamps
Scan area: 5.18×4.19mm(PAL), 4.69×3.45mm(NTSC)
Scan frequency: 50Hz(PAL), 60Hz(NTSC)
White Balance: Auto
S/N Ratio: <50dB
Operation Temperature: -10°~ +50°
Recommended Max Range for Objects: 5 Meters

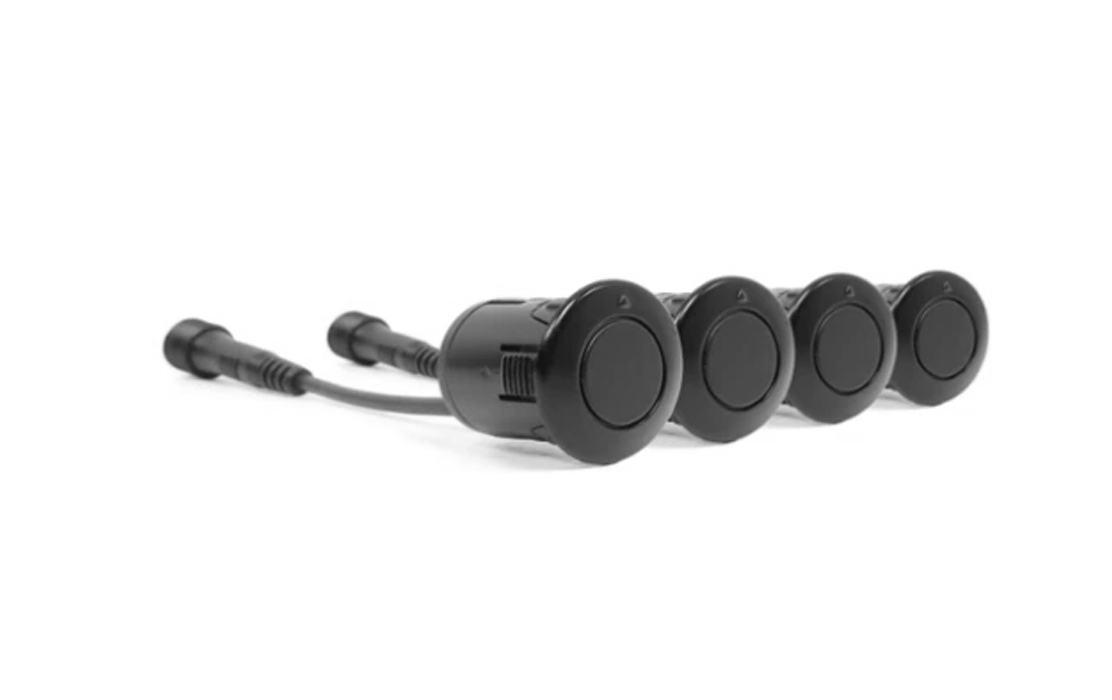

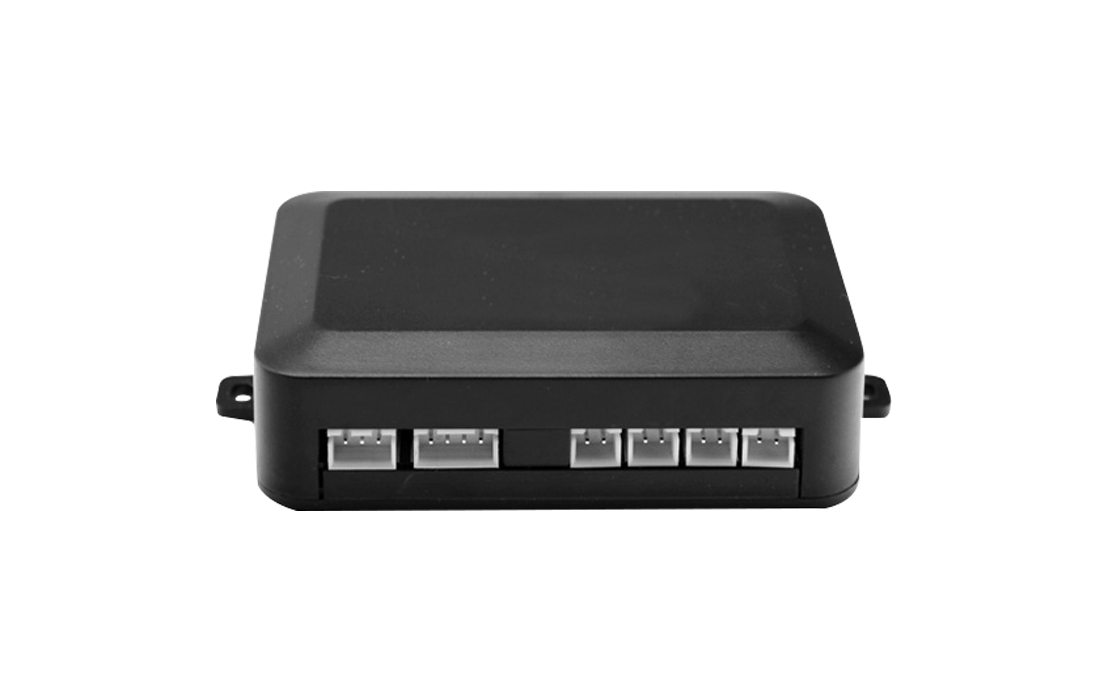

Four Sensors with a Senor Box are available
Video IN (For Connecting Camera)
Video OUT (For Connecting Camera and Sensor Information to LCD Screen)
12V Power OUT (For Powering Camera)
Detect and Display Distance:0.4~2M
Voice Distance Alert from Speaker
Exact Digital Distance Display of Obstacles on LCD Screen (Displayed in CM Increments)
Alarm Mode – Voice Warnings at 1.2, 0.9, 0.7 Meters
Alarm Mode – Continual Stop Warning at >0.5 Meters
What’s in the box
1 x Rearview Mirror Monitor
1 x Rearview Camera
4 x Parking Sensor
1 x Sensor Box
1 x Remote Controller
1 x User’s Manual
2 x Power Cable
1 x Video Cable
