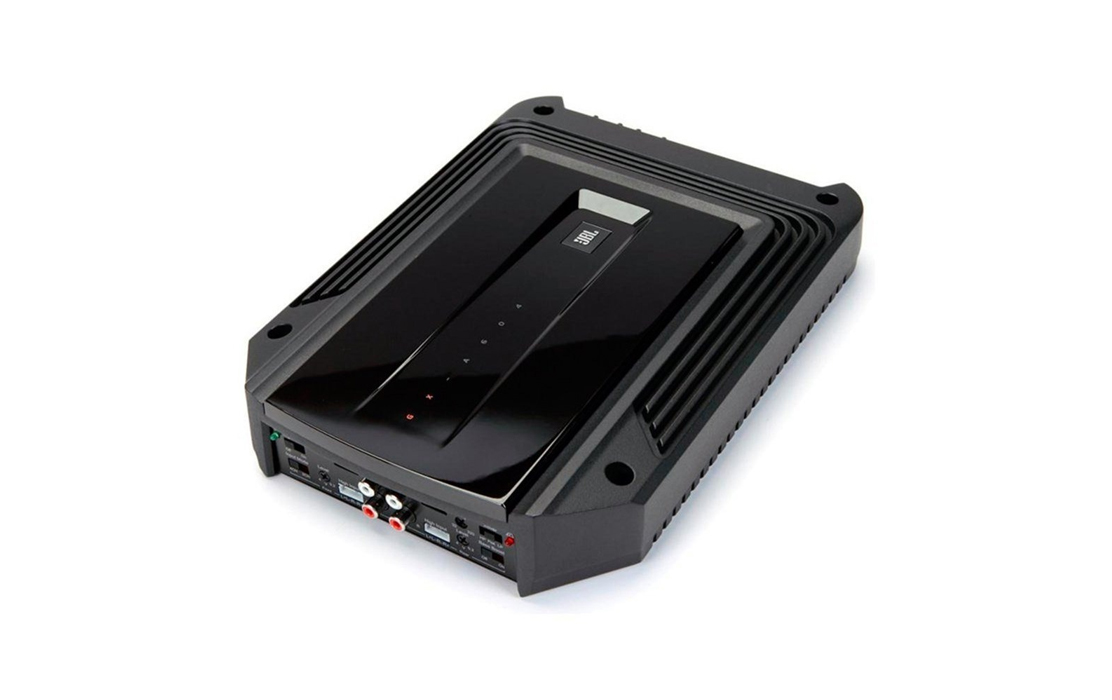

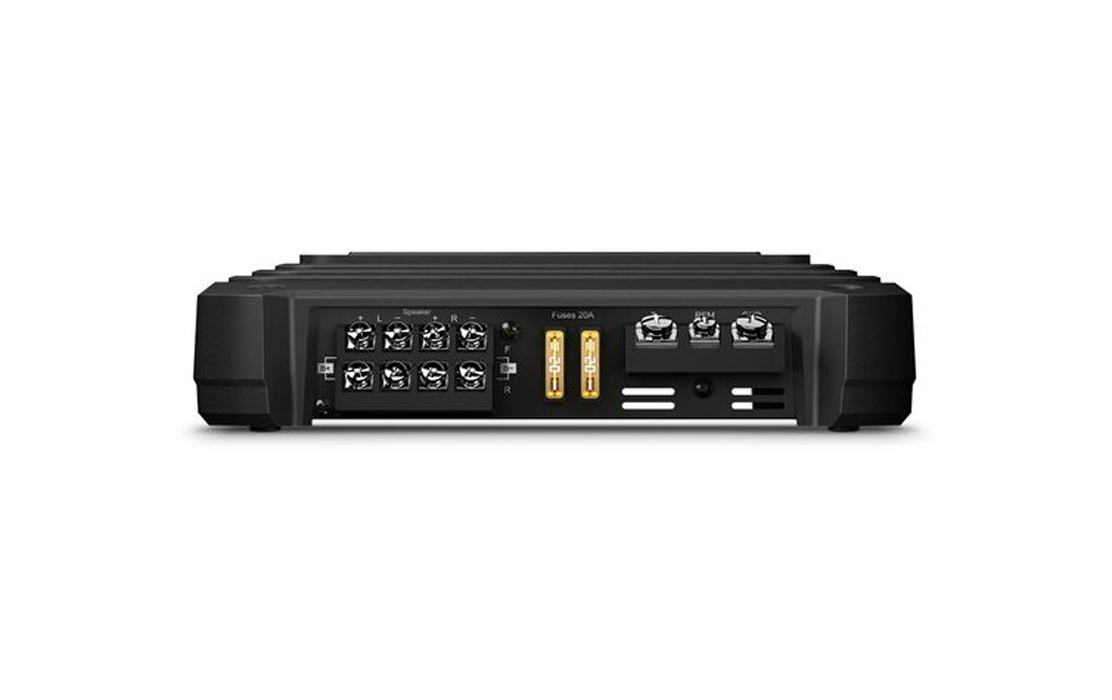

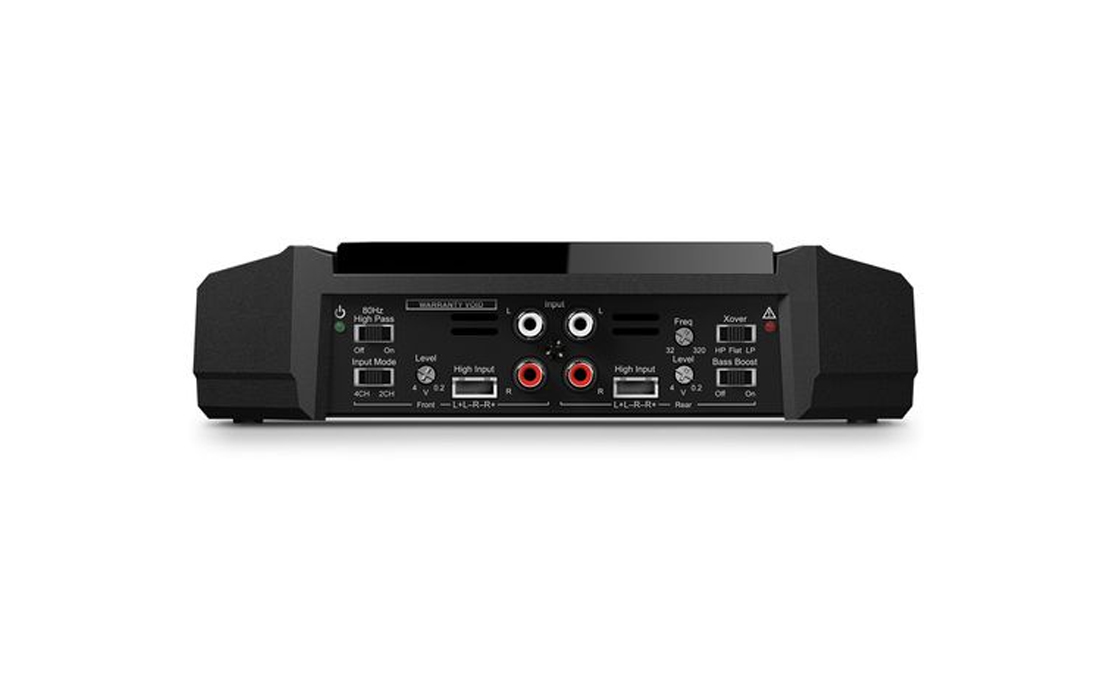

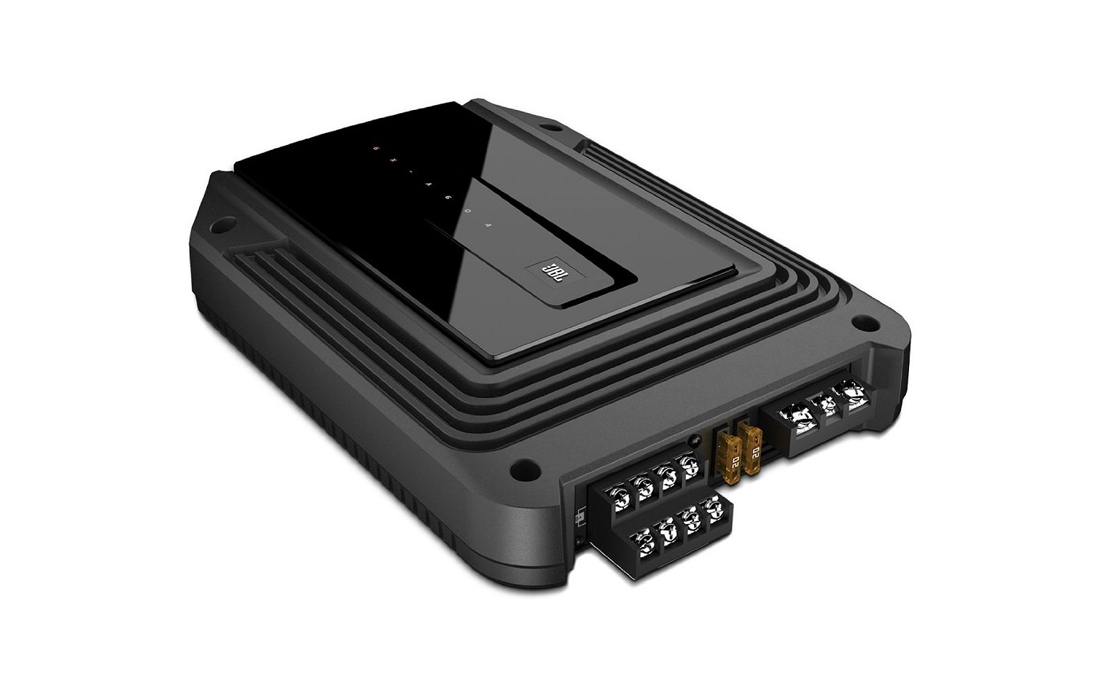

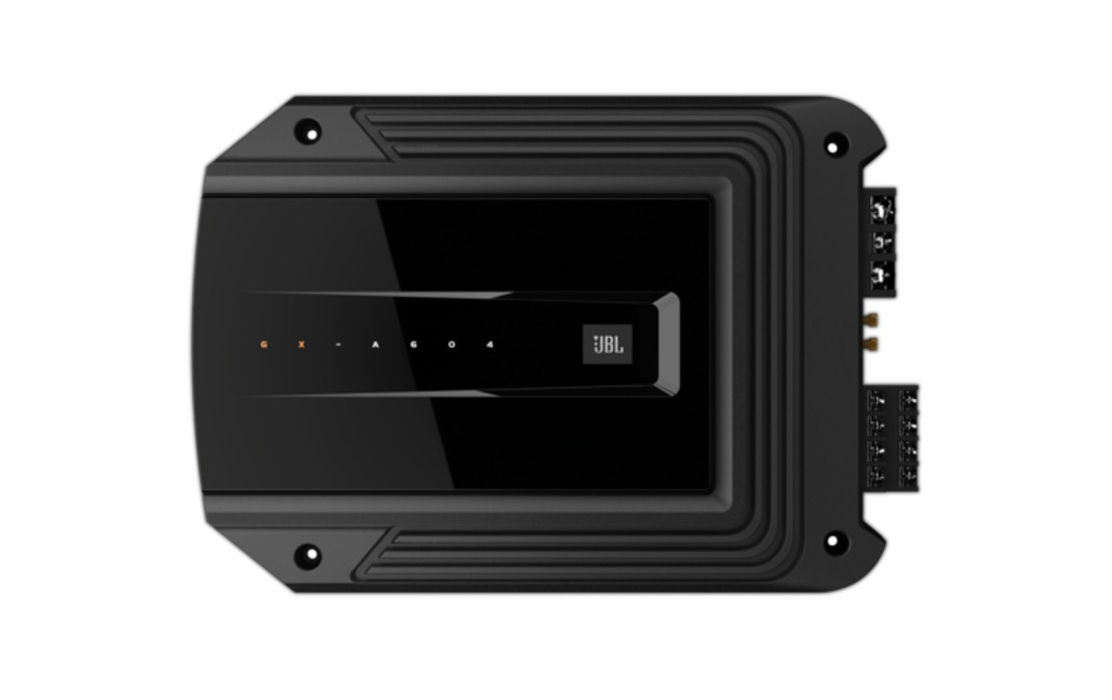

JBL GX-A604 Power Amplifier

Php 8,500.00
GX-A604 4 channels, full-range amplifier with electronic filter and variable Bass EQ on the back channels
INQUIRY FORM

Product highlights:

  • 4-channel car amplifier
  • 60 watts RMS x 4 at 4 ohms (85 watts RMS x 4 at 2 ohms)
  • 170 watts RMS x 2 at 4 ohms in bridged mode (4-ohm stable in bridged mode)
  • switchable high-pass filters (80 Hz, 12 dB/octave) on front channels
  • variable high- and low-pass filters (32-320 Hz, 12 dB per octave) on rear channels
  • switchable bass boost (0, 12 dB at 45 Hz) on rear channels
  • preamp and speaker-level inputs
  • fuse rating: 20A x 2
  • 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
  • 11-13/16″W x 2-1/16″H x 8-1/8″D



Features & specs

Performance
RMS Power Output (Watts x Channels) 60 x 4
Peak Power Output (Watts x Channels)
Power at 2 Ohms (Watts x Channels) 85 x 4
Bridged Power (Watts x Channels) 170 x 2
Minimum Impedance Bridged 4
Minimum Impedance Unbridged 2
Best Frequency Response 20-20000 Hz
THD at Rated RMS Power 1%
Signal to Noise Ratio 75 dB
Input Voltage 14.4v
Features
Amplifier Class AB
Low-Pass Crossover Frequency 32-320 Hz (R)
Low-Pass Slope (dB/octave) N/A
High-Pass Crossover Frequency 80 (F) / 32-320(R)
High-Pass Slope (dB/octave) N/A
Bass Boost 0, 12 dB (R)
Bass Boost Frequency 45 Hz
Fan Cooled No
Fuse Rating 40
Speaker Level Inputs Harness x2
Preamp Outputs No
Width (inches) 11-13/16
Height (inches) 2-1/16
Depth (inches) 8-1/8





NOTE: Pictures are for visualization only and may vary from actual items.
