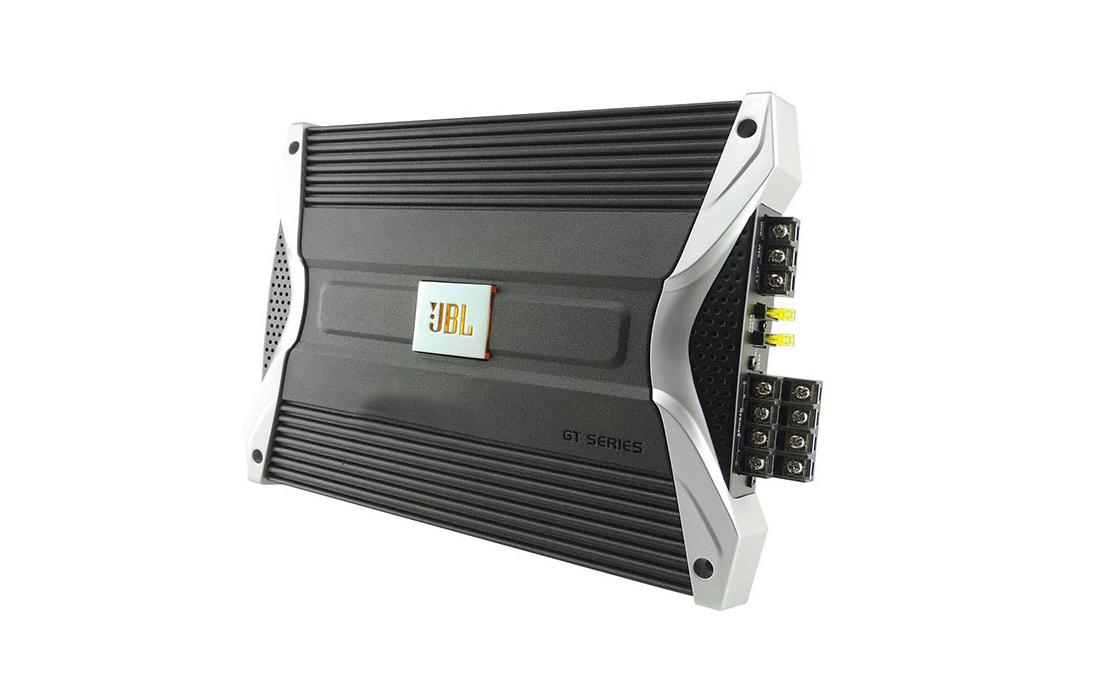

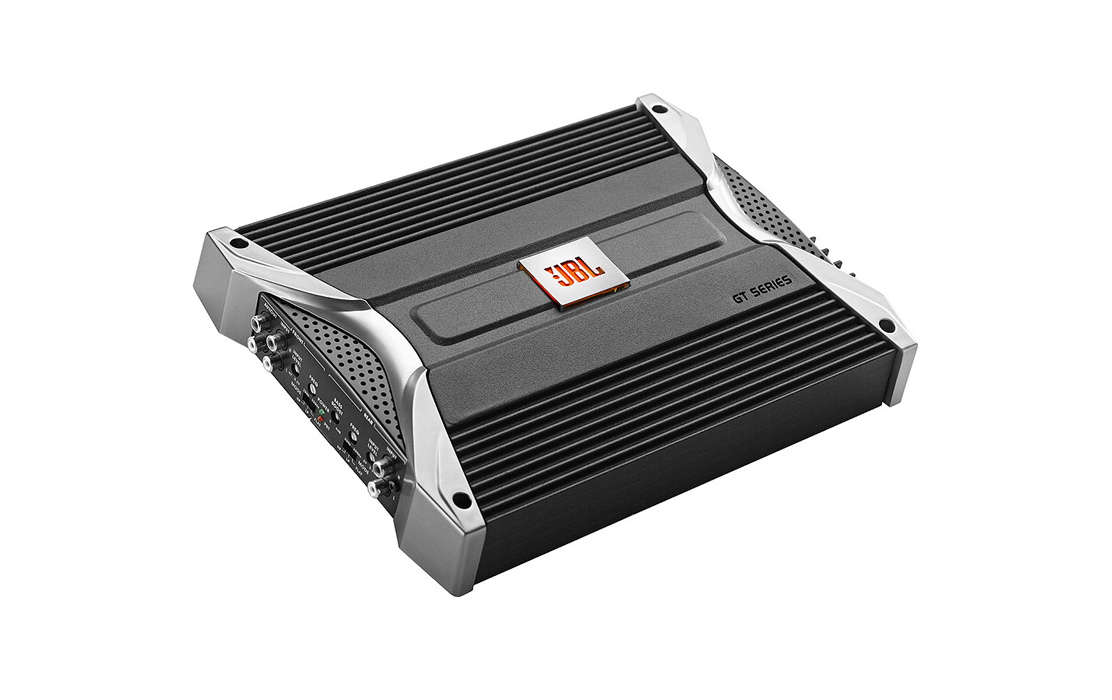

GX-A604 4 channels, full-range amplifier with electronic filter and variable Bass EQ on the back channels
- GT Series 4-Channel Class AB Car Amplifier
- RMS Power Rating:
- 4 ohms: 60 watts x 4 chan.
- 2 ohms: 80 watts x 4 chan.
- Bridged, 4 ohms: 160 watts x 2 chan.
- Max power output: 160 watts x 4 chan.
- LED power and protection indicators
- Tuned Bass EQ (0-6 dB bass boost)
- Orange backlit JBL logo
- Bridgeable operation

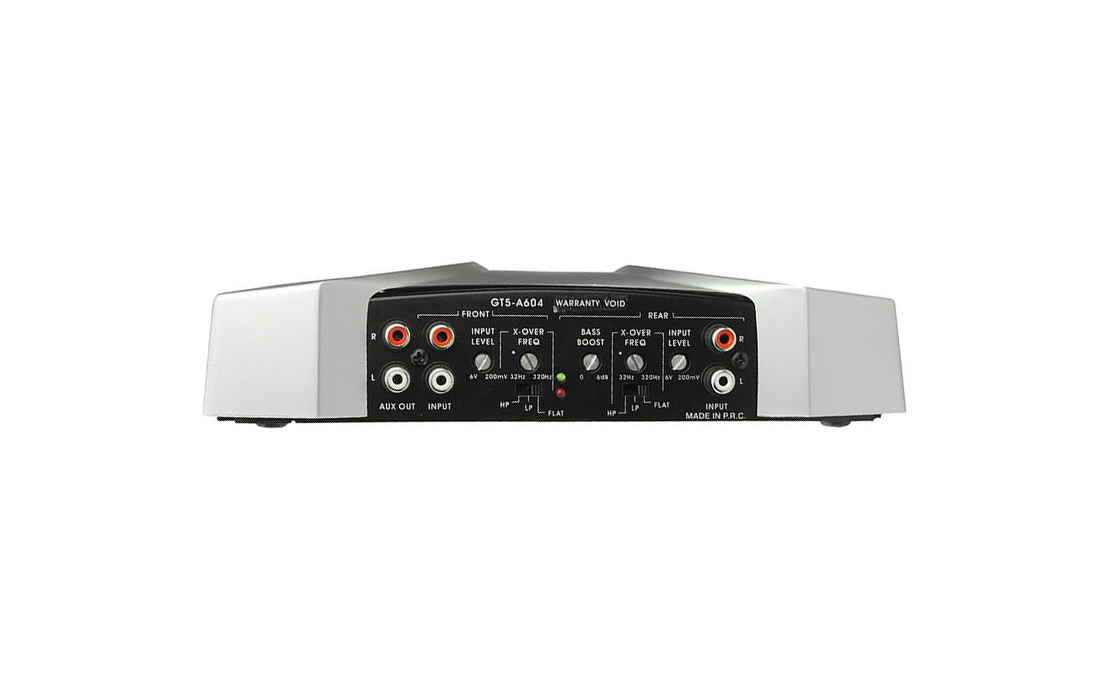

- Preamp RCA outputs
- Cast-aluminum heatsink
- Variable high-pass filter (20-320 Hz, 12 dB/octave)
- Variable low-pass filter (20-320 Hz, 12 dB/octave)
- CEA-2006 compliant amplifier
- Frequency response: 10-100000 Hz
- Dimensions: 12″L x 9-1/4″W x 2-1/8″H
- 8-gauge power and ground wiring is required for installation.
- Number Of Channels: 4 – Channel
- Minimum Impedance Unbridged: 2 Ohm
- Minimum Impedance Bridged: 4 Ohm
- Bass/Gain Remote: Not Included
- Speaker Level Inputs: No
- Maximum Input Gauge Size: 4 Gauge
- Amplifier Class: AB
- Series: GT (JBL)
- Built In Crossover: Full (AP)
- Brand: JBL
- Combined Rms Power Output: 320
- Combined Peak Power Output: 640
- Preamp Outputs: 1
- THD: 0.05%
- S/N Ratio: 102dB
- Dimensions: 305 x 235 x 54 mm
- Rms Output @ 4 Ohms: 4 x 60
- Rms Output @ 2 Ohms: 4 x 80
- Rms Output Bridged @ 4 Ohms: 2 x 160
