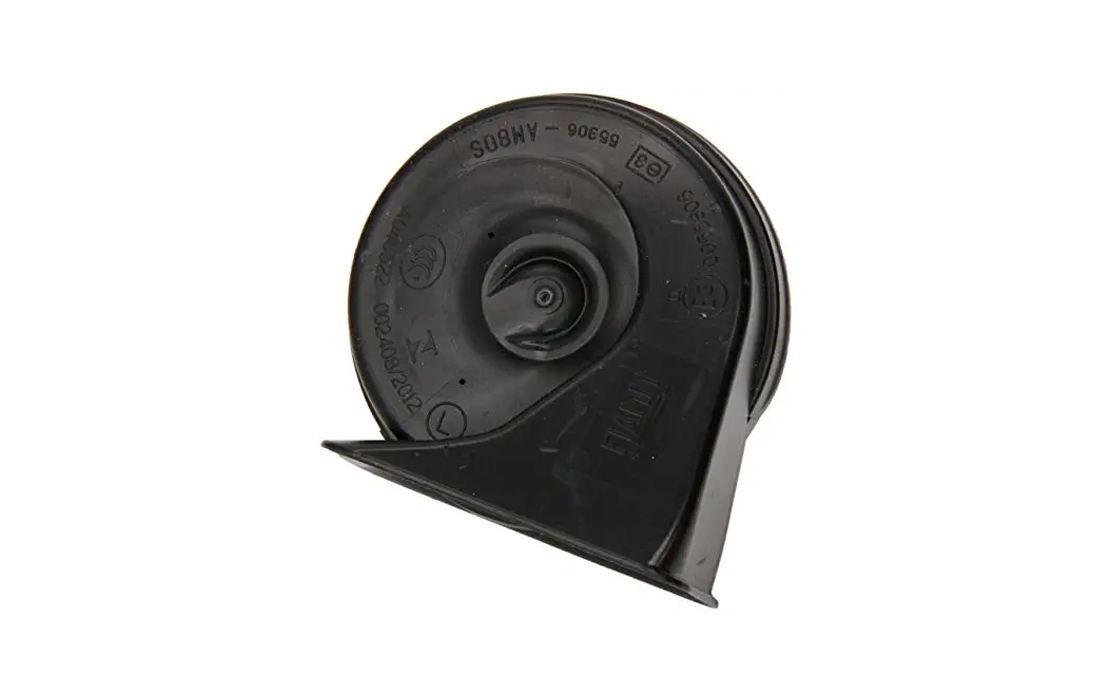

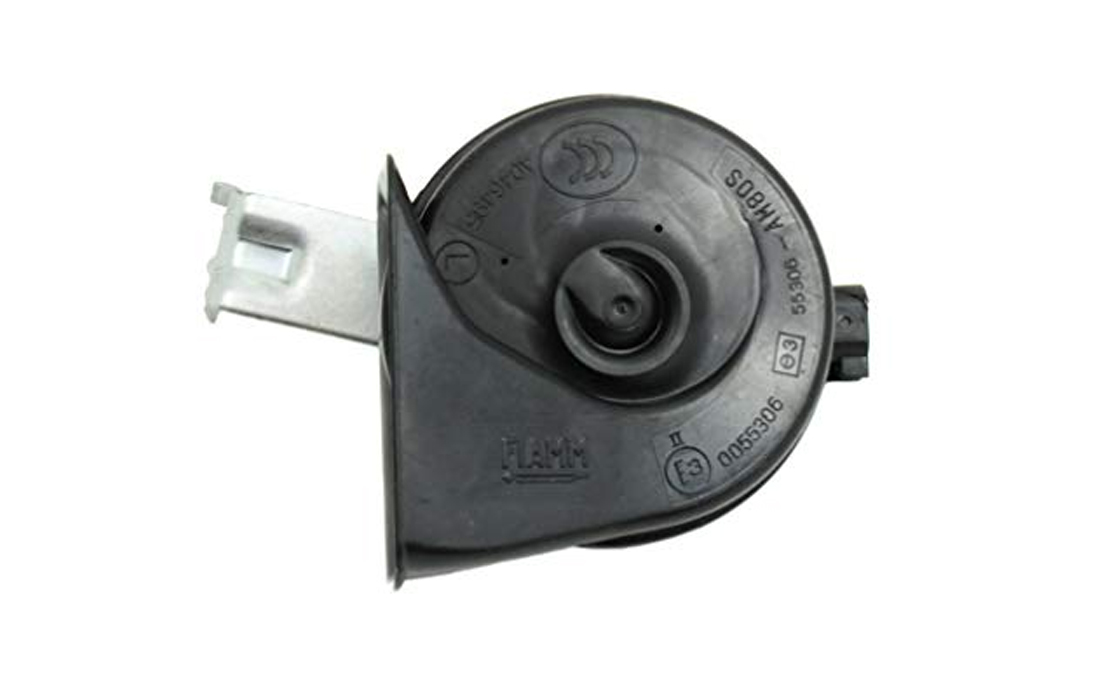

FIAMM AM80S 12V Horn

Php 2,000.00
FIAMM AM80s. High and low tone electromagnetic set of car horns. Used by most European quality car manufacturers.
Product Description

The AM-80S is designed to provide a lightweight compact size, yet powerful sound. It exceeds S.A.E. and O.E.M. specifications for a wide range of vehicle applications. Each horn is tested to assure maximum performance. Features corrosion-resistant steel housing and universal mounting bracket.  12V, 125 dB @ 4″


Nominal Voltage 12 Vdc
Voltage Ranger 11, 5-13, 8 Vdc
Current Consumption 9 A
Sound Pressure Level 110 (2m) dB (A)
Frequency “L” 405 Hz
Frequency “H” 500 Hz
Operating Temperature -30° to +80° °C
Storage Temperature 30° to +80° °C
Corrosion Resistance >480 (salt spray test) Hours
Operating Relative Humidity 30 to 80 %
Durability (1 sec ON, 4 sec OFF) > 50,000 Cycles
Continuous Blowing > 3 Min
Electrical Insulation 1000 g
Vibration (30 min, 3 axis) 1 g
Weight 240 gr
Main Materials Steel, ABS
Main Applications Car, Trucks, Motorcycles

NOTE: Pictures are for visualization only and may vary on actual items.
