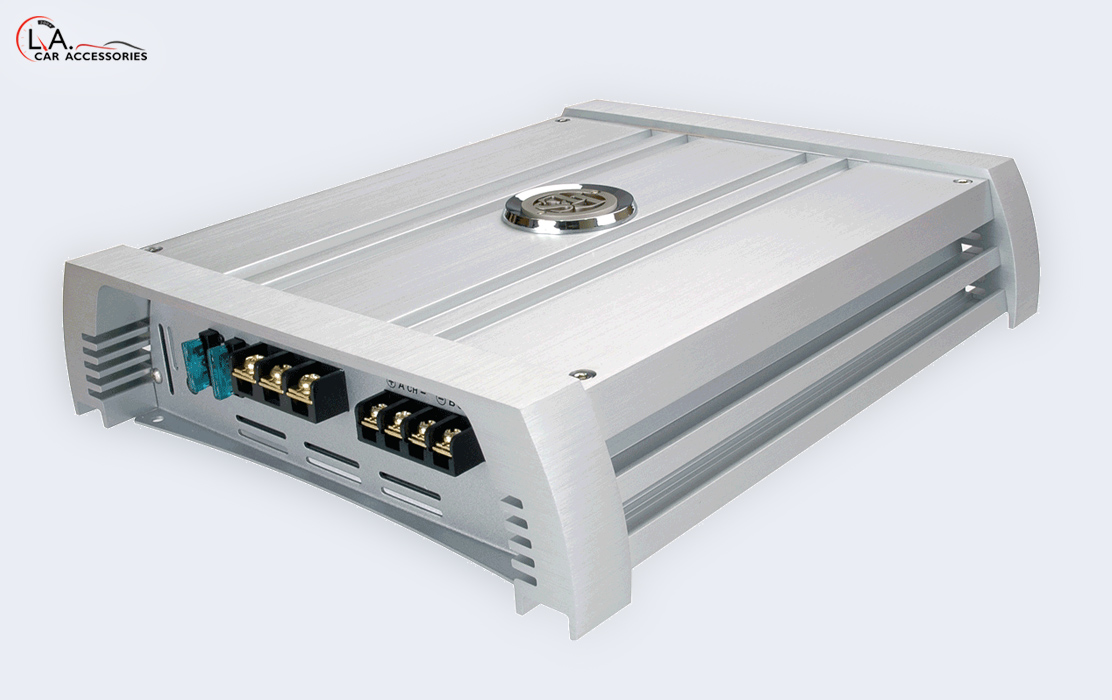

DSL CA23 – 400 W Stereo Amplifier

Php 14,800.00
CA 23 is a powerful amplifier with a power output of 2 x 135 Watts. With a mono bridge-connection, it puts out all of 400 Watts, ideal for subwoofer use.
INQUIRY FORM
Description

Dls Amp A4banner

Ca23

CA 23 is a powerful amplifier with a power output of 2 x 135 Watts.

With a mono bridge-connection, it puts out all of 400 Watts, ideal for subwoofer use.

– Built-in low pass filter for subwoofers, variable between 50 and 500 Hz.
– High pass / subsonic filter 15 – 150 Hz
– Bass boost control from 25 Hz – 80 Hz, 0-18 dB.
– Built-in protection circuits shut down the amplifier in the event of overloads.
– High level input with automatic start.
– RMS output power @ 13,8 V, 20Hz – 20 kHz

Specifications

Number of channels : 2
Amplifier class : AB
Mono bridge mode 4 ohm : 400 W RMS
Output power in 2 ohm 2 x 200 W RMS
Output power in 4 ohm : 2 x 135 W RMS
Damping factor : >100
S/N ratio, A-weighted : >100 dB
Frequency range : 10 Hz – 35 kHz
Input sensitivity : 0,25 – 5 V
Input impedance : > 10 kohm
Input impedance, high level : 100 ohm
High pass filter : 15 – 150 Hz
Low pass filter  : 50 – 500 Hz
Grand bass filter : 25 – 80 Hz, 0-18 dB
Low level output  : Yes
High level input with auto start  Yes
Power consumption (idle) : 0,7 A
Power consumption (max) : 60 A
Rec. power cable : Minimum 5AWG / 16 mm2
Dimension (W x D x H) : 70 x 312 x 268 mm (2,92 x 12,28 x 10,55 inch)
Fuses : 2 x 30 A
Weight : 3,6 kg ( 7,9 lb)

NOTE: Pictures are for visualization only and may vary on actual items.
