DLS XM10

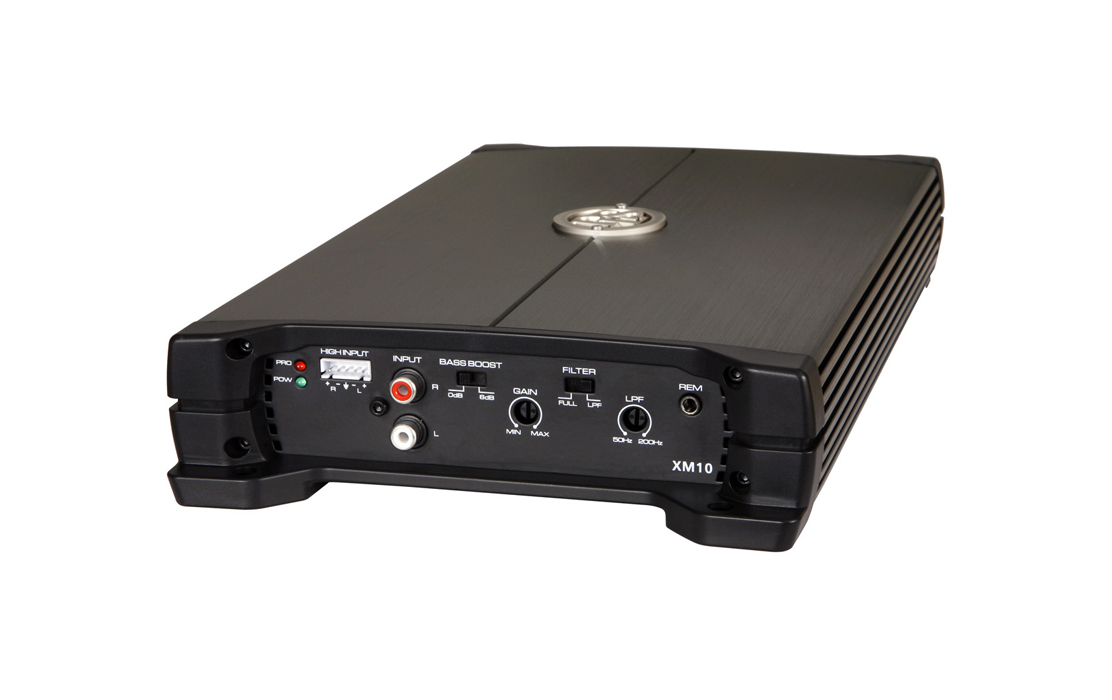

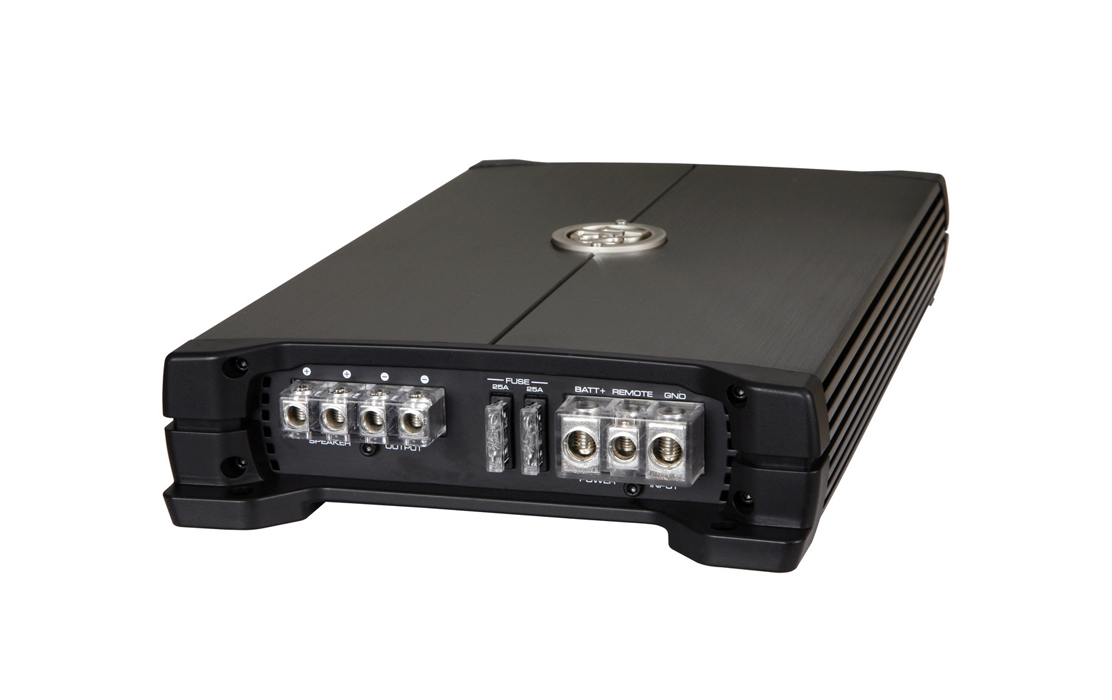

DLS XM10 Performance Series Class AB 1-Channel Monoblock 550 Watt Car Amplifier
INQUIRY FORM
Product Description
  • Performance XM10 – 1 x 550 Watt mono amp.
  • XM10 is a compact and powerful mono amplifier with a peak music power of 550 Watts @ 2-ohm load. A  popular and good power amplifier with high reliability.
  • Built-in low-pass filter for subwoofers, variable between 50 and 200 Hz.
  • With the filter disconnected the amplifier works as a full range amplifier.
  • Built-in protection circuits shut down the amplifier in the event of overloads
  • BASS BOOST switch,  +6 dB.

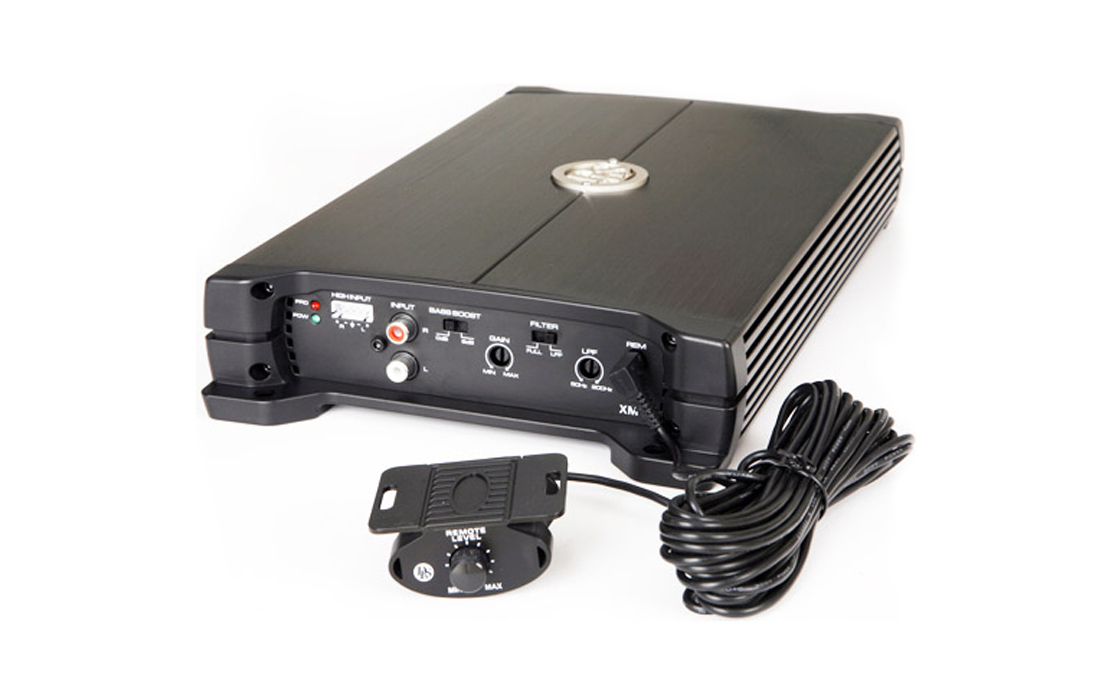

  • Remote bass level control is included
  • High-level input with automatic start.
  • Cooling fan in the bottom plate.
  • RMS output power @ 14,4 V

Technical Specifications:

  • Number of channels: 1
  • Amplifier class: AB
  • Peak power: 550 W
  • Output power in 2 ohm: 415 W RMS
  • Output power in 4 ohm: 256 W RMS
  • Mono bridge mode 4 ohm: N/A
  • Damping factor: > 80
  • S/N ratio, A-weighted: > 93 dB
  • Frequency range: 10 Hz – 30 kHz
  • Low-level output: No
  • Input sensitivity: 0.25 – 5 V
  • Input impedance: 22 Kohm
  • Input impedance, high level: 220 ohm
  • Low pass filter: 50 – 200 Hz
  • Grand bass filter: Bass boost OFF – +6dB
  • High-level input with auto start: Yes
  • Remote phase shift control: No
  • Power consumption (idle): 0.6 A
  • Remote bass level control: Yes
  • Power consumption (max): 50 A
  • Integrated fan: Yes
  • Rec. power cable: Minimum 5 AWG / 16 mm2
  • Fuses: 2 x 25 A
  • Dimension (W x D x H): 189 mm x 322 mm x 51 mm (7.44″ x 12.67″ x 2″)
  • Weight: 3 kg (6.6 lb)
  • EAN Bar code: 7331644923305
  • Built-in protection circuits shut down the amplifier in the event of overloads
  • High-level input with automatic start
  • Cooling fan in the bottom plate
  • RMS output power @ 14.4 V
