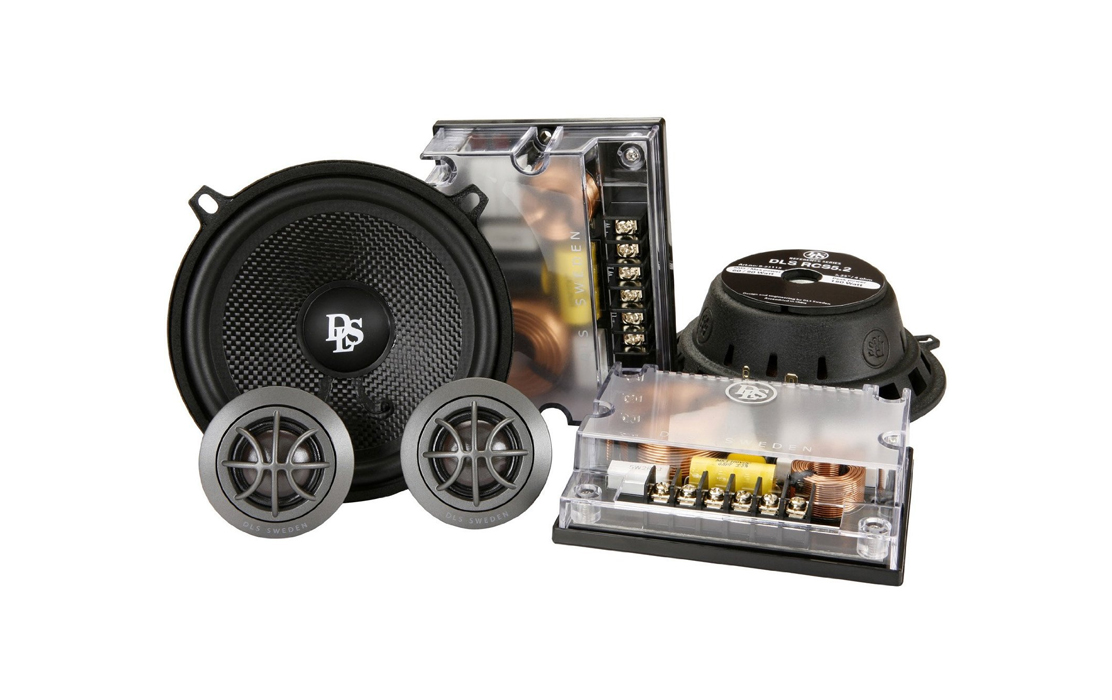

DLS RCS5.2 2-Way Component Speaker

Php 10,500.00
Reference series RCS5.2 is a 13 cm (5,25") 2-way component with good sound qualitys. The cone is made of wowen fibre glass with a rubber surround.
INQUIRY FORM



Reference series RCS5.2 is a 13 cm (5,25″) 2-way component with good sound quality. The cone is made of wowen fiberglass with a rubber surround.

A small installation depth (43 mm)makes them fit most vehicles.
– Filter boxes with selectable tweeter level.
– 25 mm silk dome tweeter with copper rings.
– Grilles are included.



SPECIFICATIONS

Woofer size 13 cm (5,25″)
Tweeter RC25, 25 mm (1″) silk dome tweeter with copper rings
Power handling capacity 50 W RMS / 90 W max / 180 W peak power
Impedance 4 ohm
Frequency range 70 – 22.000 Hz
Sensitivity 86 dB (1W/1m)
Outer diameter of the woofer 130 mm (5,25″)
Cone material Wowen fiberglass
Magnet size 70 mm (3,15″), hybrid FE / Nd
Crossover Box filter with 12/12 dB slope (LP/HP)
Crossover point (Hz) 5500 Hz
Size of filter box 125 x 95 x 34 mm
Mounting depth 43 mm ( 1,7″)
Mounting hole 123 mm (4,84″)
T/S parameters
single V/C
Fs  Hz   Re  Ohm   Qms
Vas  liter   Vas  Cuft   Qes
Qts   Sd  cm²   BL
EAN Bar code 7331644821502
