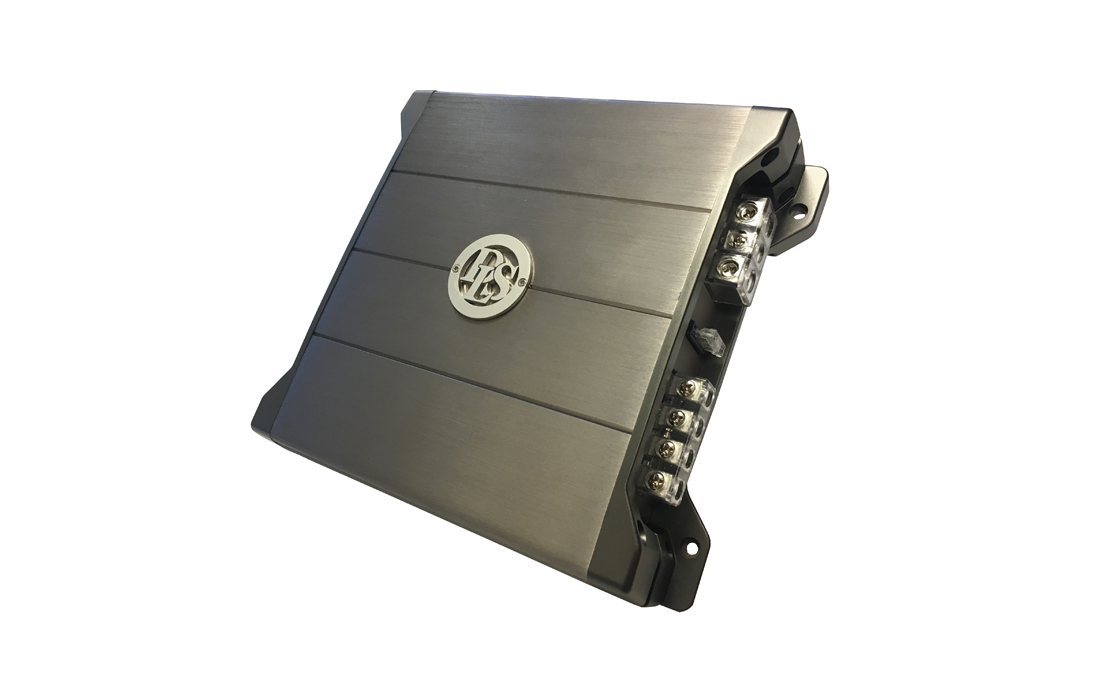

DLS P20 Car Amplifier

Php 10,500.00
P20 is a small and powerful amplifier with a peak power output of 2 x 150 Watts. In 4 ohm mono bridge-connection, it puts out all of 200 Watts.
INQUIRY FORM
Product Description
  • Built-in low-pass filter for subwoofers, variable between 50 and 500 Hz.
  • The high-pass filter is also variable between 50 and 500 Hz.
  • Built-in protection circuits shut down the amplifier in the event of overloads.
  • High level input with AUTO-start function makes it easier to connect to factory installed head units.
  • Bass EQ function in two steps, +6dB or +12 dB.

Specifications

 Number of channels  2
 Amplifier class  AB
 Mono bridge mode 4 ohm  200 watt
 Output power in 2 ohm  2 x 100 watt
 Output power in 4 ohm  2 x 70 watt vid 0,1% THD
 Damping factor  >80
 S/N ratio, A-weighted  >95 dB
 Frequency range  10 Hz – 30 kHz
 Input sensitivity  0,25 – 5 Volt
 Input impedance  22 kohm
 Input impedance, high level  47 ohm
 High pass filter  50 – 500 Hz
 Low pass filter  59 – 500 Hz
 Grand bass filter  Bass EQ +6dB / +12 dB @ 50 Hz
 Low level output  No
 High level output with auto start  Yes
 Power consumption (idle)  0,4 A
 Power consumption (max)  25 A
 Rec. power cable  16 sq mm (5 AWG)
Fuses  1 x 25 A
Dimension (W x D x H)  189 x 210 x 46 mm (744″ x 8,26″ x 1,81″)
 Weight  2 kg

NOTE: Pictures are for visualization only and may vary on actual items.
