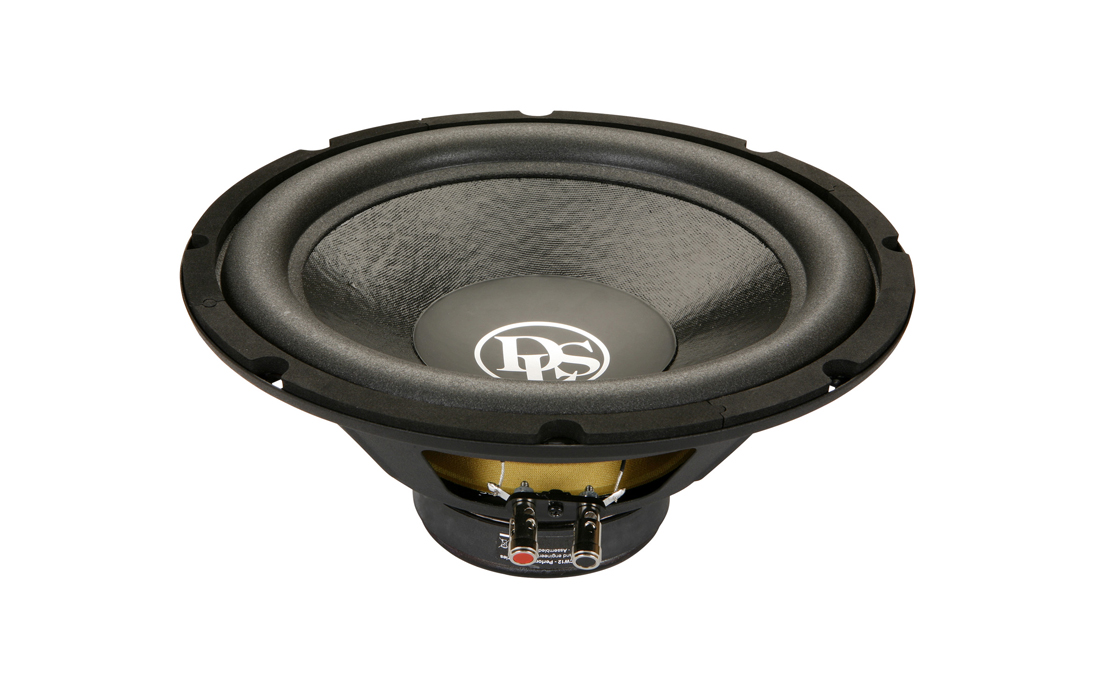

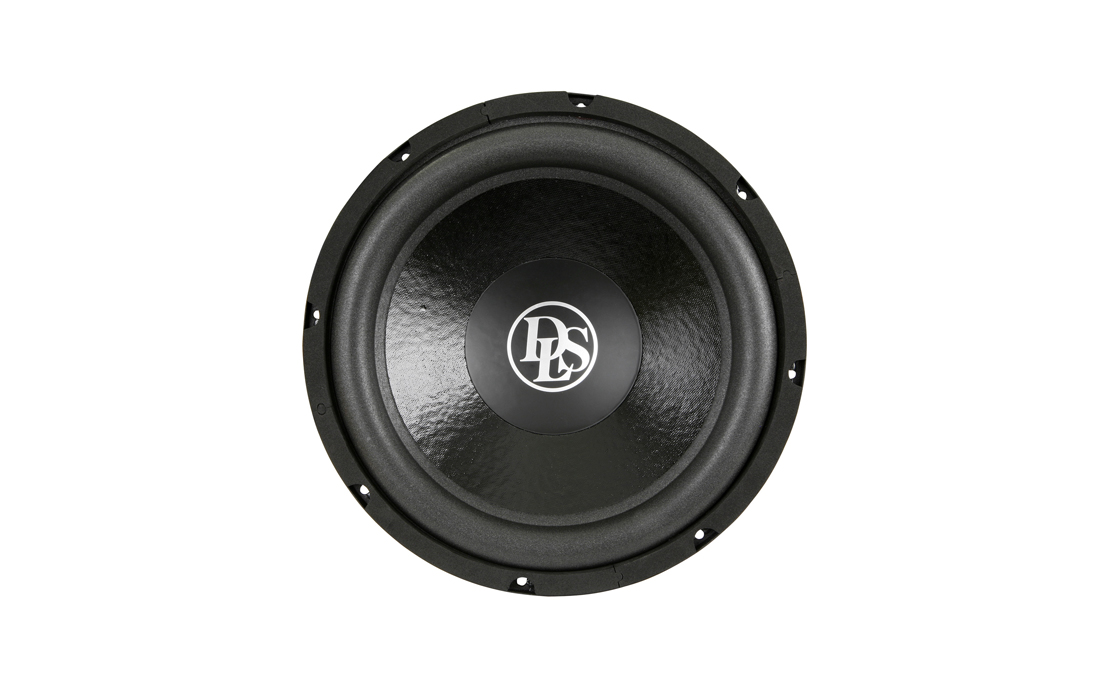

DLS MCW12 Subwoofer

Php 8,700.00
Performance series MCW12 is a 12 inch subwoofer. It is an upgraded version of the previous KW12. Basket in frosted black colour with push terminals. With parameters that makes them work fine in both sealed and vented boxes. The bass drivers has a cone of strong pressed paper and a powerful magnet system creates a good bass control.
INQUIRY FORM

SPECIFICATIONS

Woofer size12″ (30 cm)
Outer diameter of woofer310 mm (12″)
Mounting depth130mm (5,12″)
Mounting hole280 mm (11″)
X-max+- 9 mm (0,35″)
Frequency range20 Hz – 1 kHz
Impedance4 ohm
Sensitivity87,75 dB
Power handling capacity250 W
Max power handling capacity500 W
Peak power700 W
T/S parameters
single V/C
Fs33,5 Hz  Re3,0 Ohm  Qms6,16
Vas57 liter  Vas2,0 Cuft  Qes0,57
Qts0,52  Sd491 cm²  BL12,13
Magnet size120 mm (4,72″)
EAN Bar code7331644823407
Weight3,1 kg (6,8 lb)
