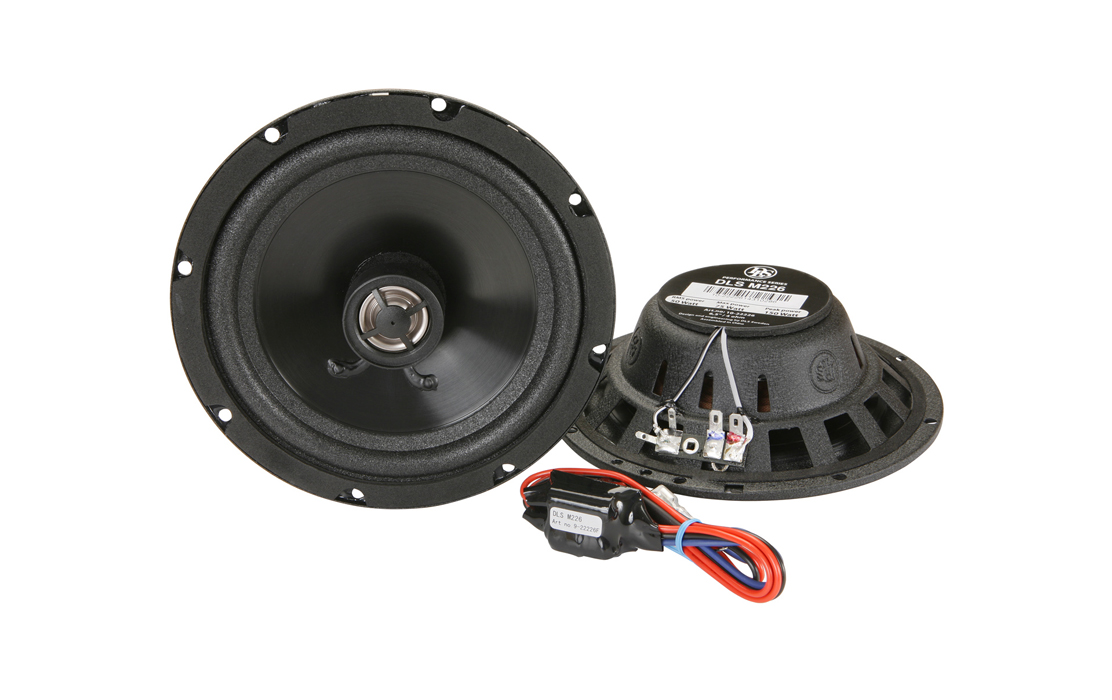

DLS M226 Coaxial Speaker

Php 7,000.00
Car Speaker System, 2-way coaxial, 6.5 "(165 mm). 50 watts RMS / 75 watts max, 70-18000 Hz, 88 dB, external crossover, grills included.
INQUIRY FORM

Details:

Performance series M226 is a16,5 cm (6,5″) 2- way coaxial speaker with a 16 mm mylar tweeter.

The small installation depth makes the speaker fit almost everywhere.

– Polypropylene cone and foam surround

– Crossover has a 6/12 dB slope.

– Grilles are included.



Specifications

Woofer size 16,5 cm (6,5″)

Tweeter 16 mm (0,63″) mylar tweeter

Power handling capacity 50 W RMS / 75 W max / 150 W peak power

Impedance 4 ohm

Frequency range 60 – 18.000 Hz

Sensitivity 85 dB (1W/1m)

Crossover Cable filter with 6/12 dB slope (LP/HP)

Outer diameter of woofer 165 mm (6,5″)

Magnet size 80 mm (3,15″)

Mounting depth 45 mm ( 1,77″)

Mounting hole 145 mm (5,7″)



NOTE: Pictures are for visualization only and may vary on actual items.
