DLS M224 Coaxial Speaker

DLS M224 Coaxial Speaker

Php Php 7,500.00 1

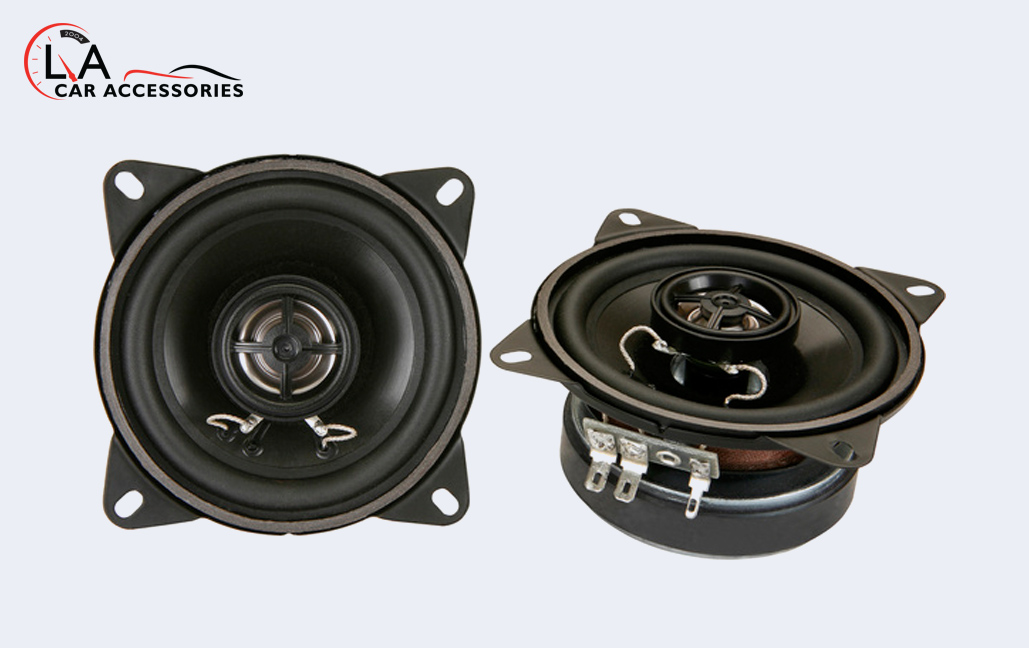

Performance series M224 is a new 10 cm (4”) 2-way coaxial with a 16 mm mylar tweeter. The bass driver has a cone of polypropylene and rubber surround. Together with a powerful magnet system it gua - rantees a good sound control. Grilles are included. 6 dB filter to the tweeter.
INQUIRY FORM
Description

Performance series M224 is a 10 cm (4″) 2- way coaxial speaker with a 16 mm tweeter.

– Small installation depth, only 48 mm

– Polypropylene cone and rubber surround

– Crossover with 6 dB slope.

– Grilles are included.

Specifications

Woofer size                  10 cm (4″)

Tweeter                          16 mm (0,63″) mylar

Power handling capacity       50 W RMS / 75 W max. 150 W peak

Impedance                   4 ohm

Frequency range          75 – 18.000 Hz

Sensitivity                          85 dB (1W/1m)

Outer diameter of woofer 100 mm (4″)

Magnet size                  80 mm (3,15″)

Mounting depth                  48 mm ( 1,89″)

Mounting hole                  97 mm (3,82″)

NOTE: Pictures are for visualization only and may vary on actual items.
