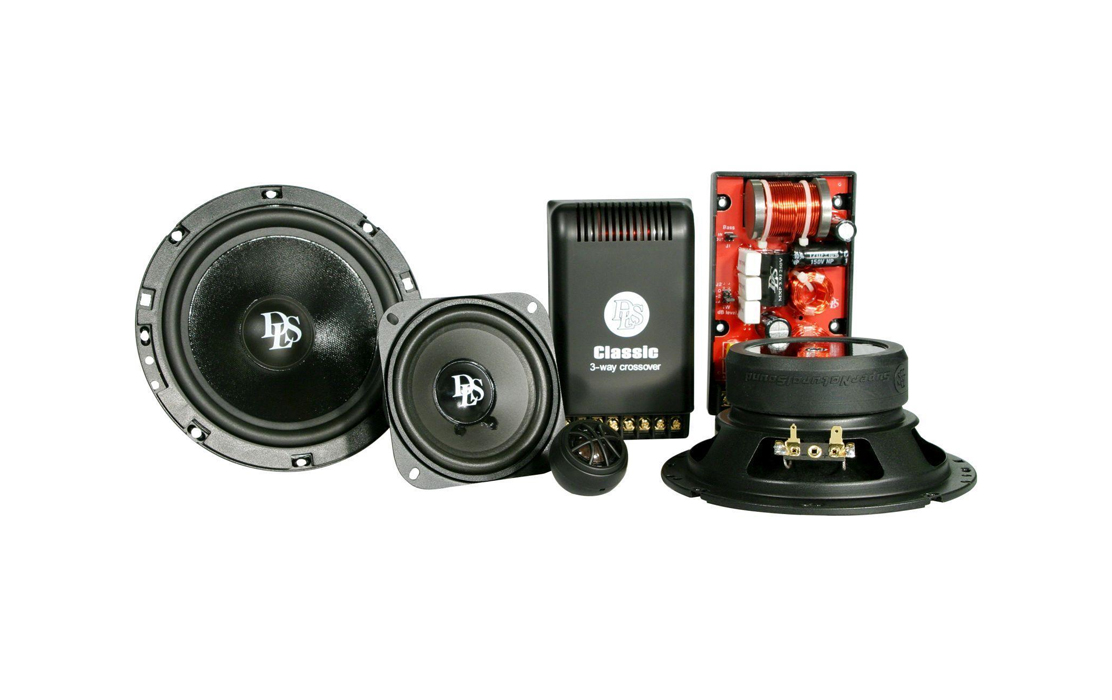

DLS COM-C36 Component Speaker

Php 15,500.00
Performance series C36 is a 3-way component kit with: - 16,5 cm (6,5") bass, - 10cm mid (4") - 20 mm (0,8") tweeter. - Powerful magnet system. - Filter boxes with selectable tweeter level. - 20 mm (08") silk dome tweeter, T20.
INQUIRY FORM

Performance series C36 is a 3-way component kit with:
– 16,5 cm (6,5″) bass,
– 10cm mid (4″) – 20 mm (0,8″) tweeter.
– Powerful magnet system.
– Filter boxes with selectable tweeter level.
– 20 mm (08″) silk dome tweeter, T20.
– Grilles are included.

Specifications:

Tweeter T20 – 20 mm (0,8″) silk dome tweeter
Woofer size 16,5 cm (6,5″)
Midrange size 10 cm (4″)
Power handling capacity 60 W RMS / 90 W max
Frequency range 60 – 20 000 Hz
Crossover point (Hz) 450Hz / 6000 Hz
Impedance 4 ohm
Sensitivity 93 dB (1W/1m)
Outer diameter of woofer Woofer 165 mm (6,5″). Midrange 100 mm (3,94″)
Magnet size Woofer 80 mm (3,15″). Midrange 70 mm (2,75″)
Crossover Filter box with 12/6/12 dB slope
Size of filter box 145 x 85 x 45 mm ( 5,71 x 3,35 x 1,77″)
Mounting depth Woofer 63 mm ( 2,48″). Midrange 58 mm (2,28″)
Mounting hole Woofer 146 mm (5,75″). Midrange 102 mm (4″)

Article number(s)
10-21036
