DLS CC500

Php 12,800.00
CC-500 is a compact and powerful mono amplifier with a power of 500 Watts RMS @ 1 ohm load. A popular and good power amplifier with high reliability. An amplifier for both amateurs and professionals.
INQUIRY FORM
Description

Dls Amp A4banner

Dls Cc500gif

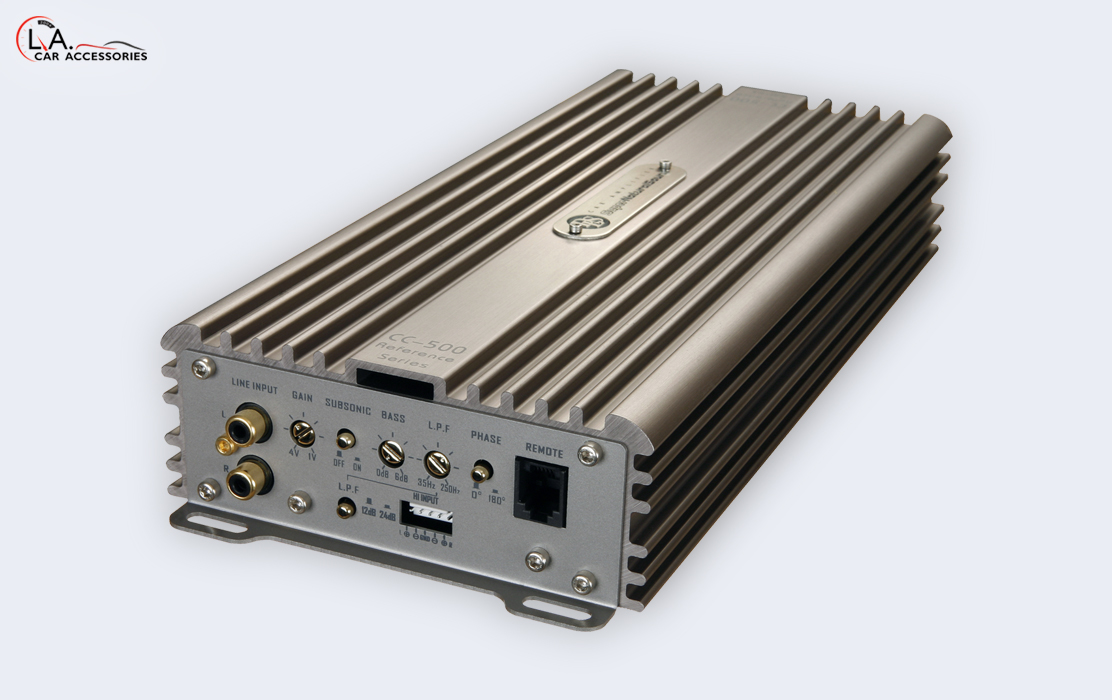

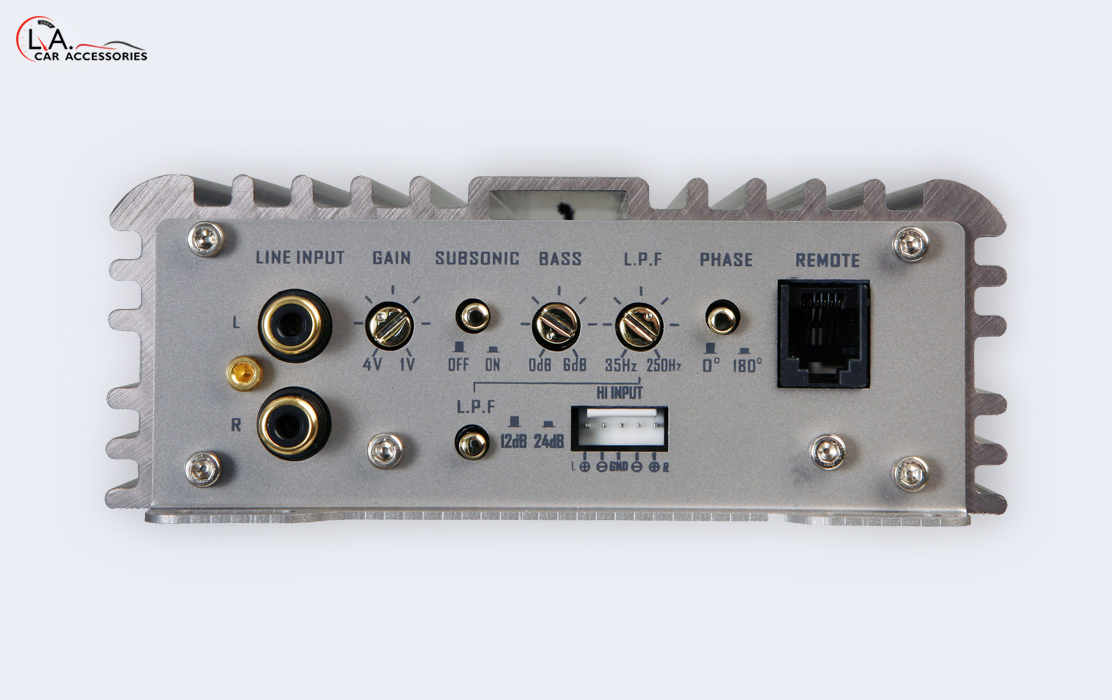

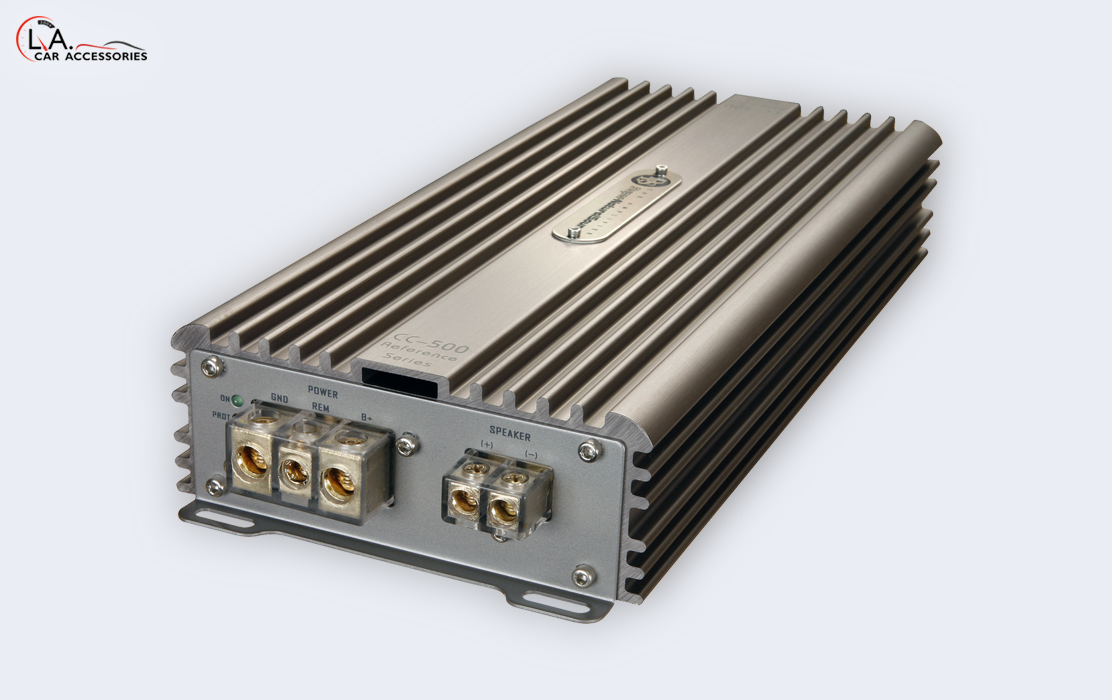

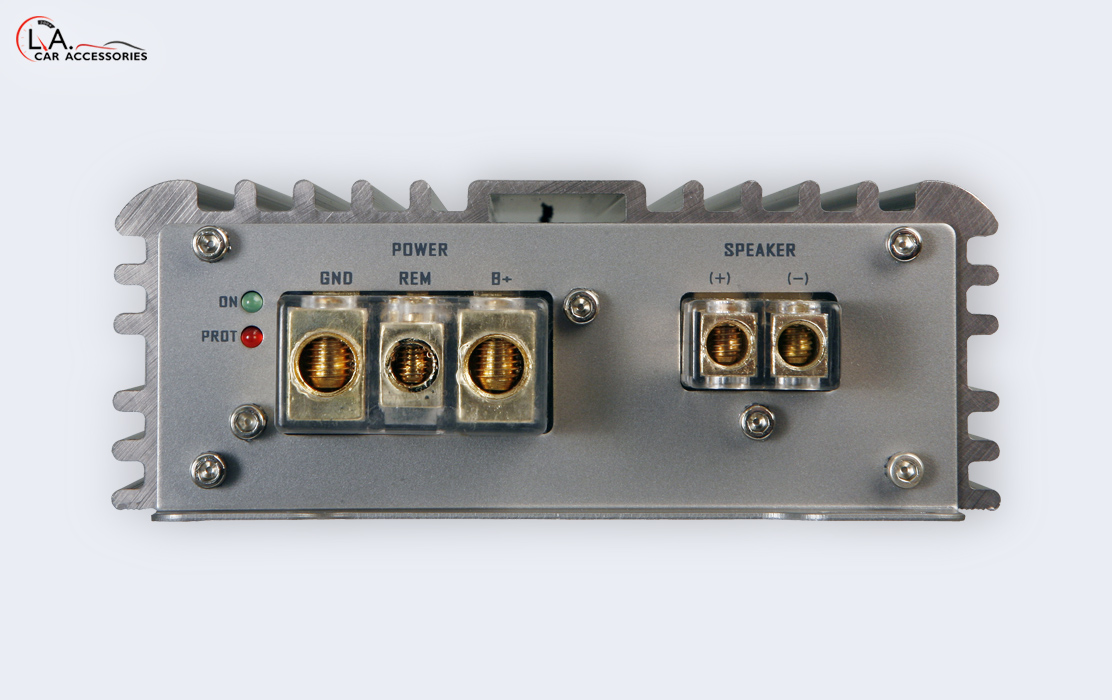

CC-500 is a compact and powerful mono amplifier with a power of 500 Watts RMS @ 1 ohm load.

A popular and good power amplifier with high reliability.

An amplifier for both amateurs and professionals.

– Built-in low-pass filter for subwoofers, variable between 35 and 250 Hz.  Selectable 12 / 24 dB slope.

– Built-in protection circuits shut down the amplifier in the event of overloads

– BASS BOOST adjustable 0 – +6 dB.

– Damping factor >140

– S/N ratio, A weighted: 97 dB

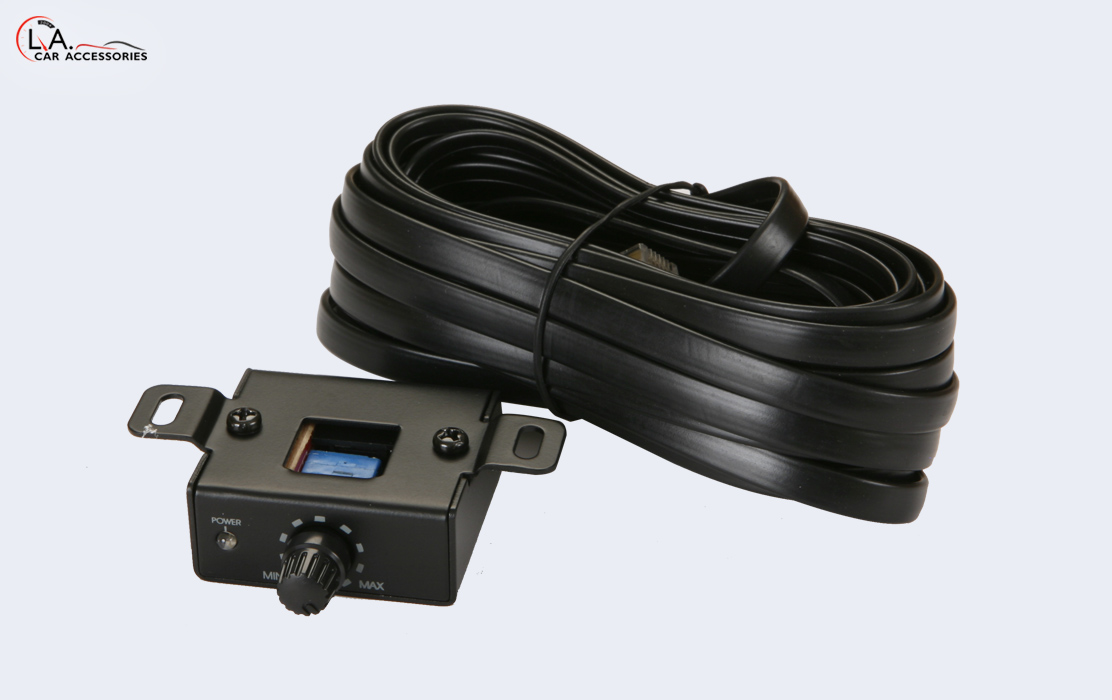

– Remote bass level control is included

– High level input with automatic start.

-RMS output power @ 14,4 V

Received the award as “KLANGTIPP” in Spitzenklasse in german magazine CAR & HIFI in january 2015.

We have revised down values of the output power for the CC 500. We had previously indicated too high figures due to inaccurate measurement tasks.

Specifications

Number of channels 1

Amplifier class D

Output power in 1 ohm 500 W RMS

Output power in 2 ohm 400 W RMS

Output power in 4 ohm 250 W RMS

Damping factor > 140

S/N ratio, A-weighted > 97 dB

Frequency range 10 Hz – 500 Hz

Low level output No

Input sensitivity 1 – 4 V

Input impedance 22 kohm

Input impedance, high level 45 ohm

High pass filter Subsonic 30 Hz, ON/OFF

Low pass filter 35 – 250 Hz, 12 or 24 dB slope

Grand bass filter Bass boost 0- +6dB variable

Phase control for subwoofers 0 or 180 degrees switch

High level input with auto start Yes

Remote phase shift control No

Power consumption (idle) 0,6 A

Remote bass level control Yes

Power consumption (max) 80 A

Integrated fan No

Rec. power cable 2AWG / 33 mm2

Fuses Use external fuse 60 A

Dimension (W x D x H) 129 x 304 x 51 mm / 5,07 x 11,96 x 2″

Weight 2,4 kg / 5,3 lb

EAN Bar code 7331644329107

NOTE: Pictures are for visualization only and may vary on actual items.
