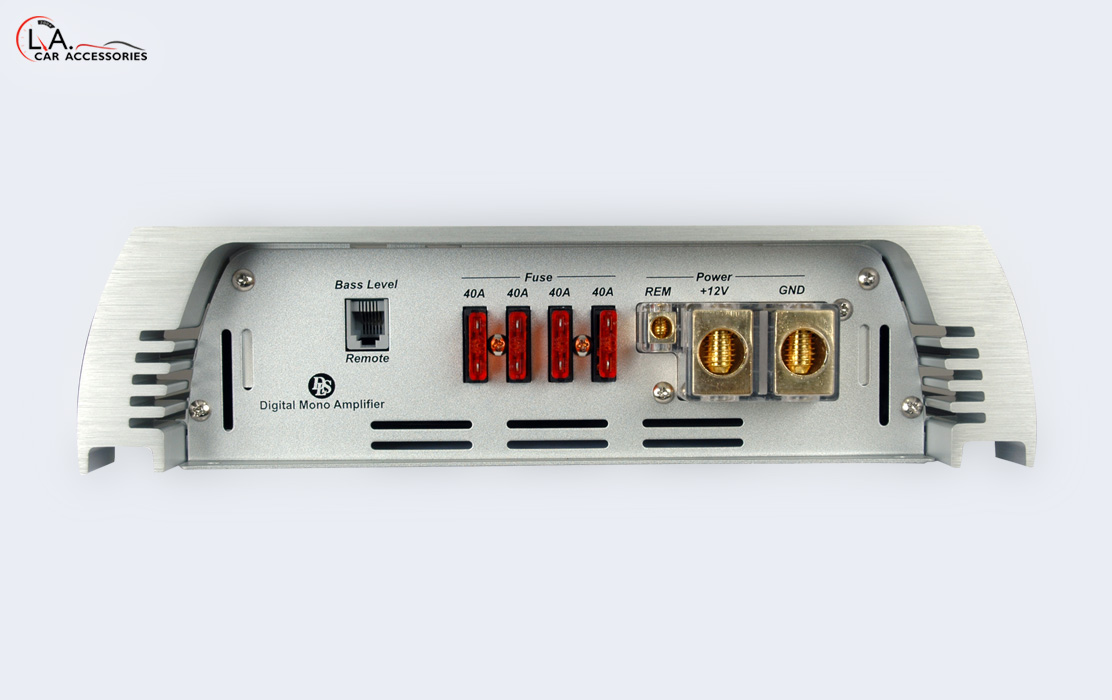

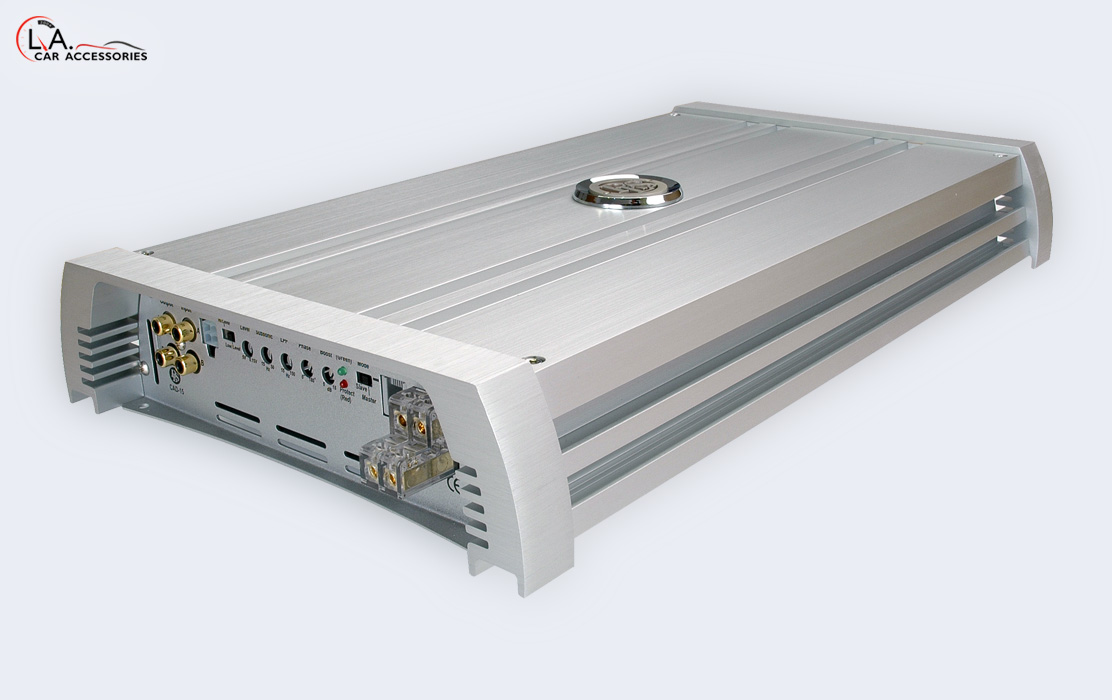

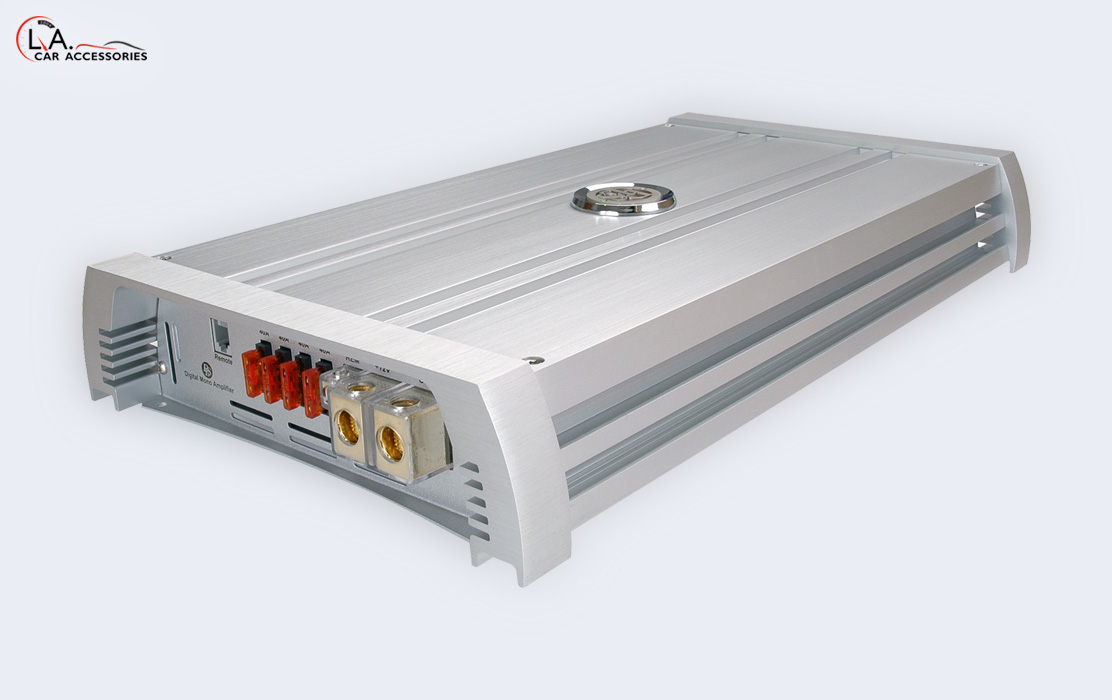

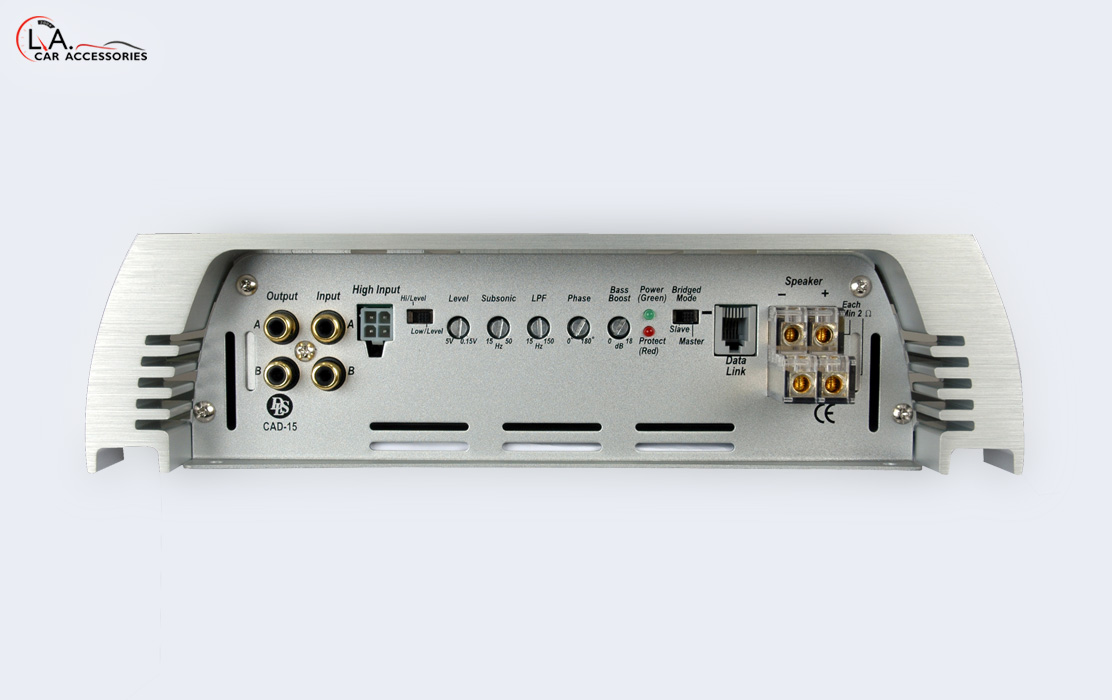

DLS CAD15 performance mono amplifier DLS CAD-15 Digital CAD15 is a very powerful mono amplifier with a nominal power of 1600 W in 1 ohm load. In 4 ohm output is 550 watts and 900 watts into 2 ohms. CAD15 is a digital Class D amplifier.
Adjustable Bass Boost 0-18 dB.
Built-in phase control variable 0-180 degrees.

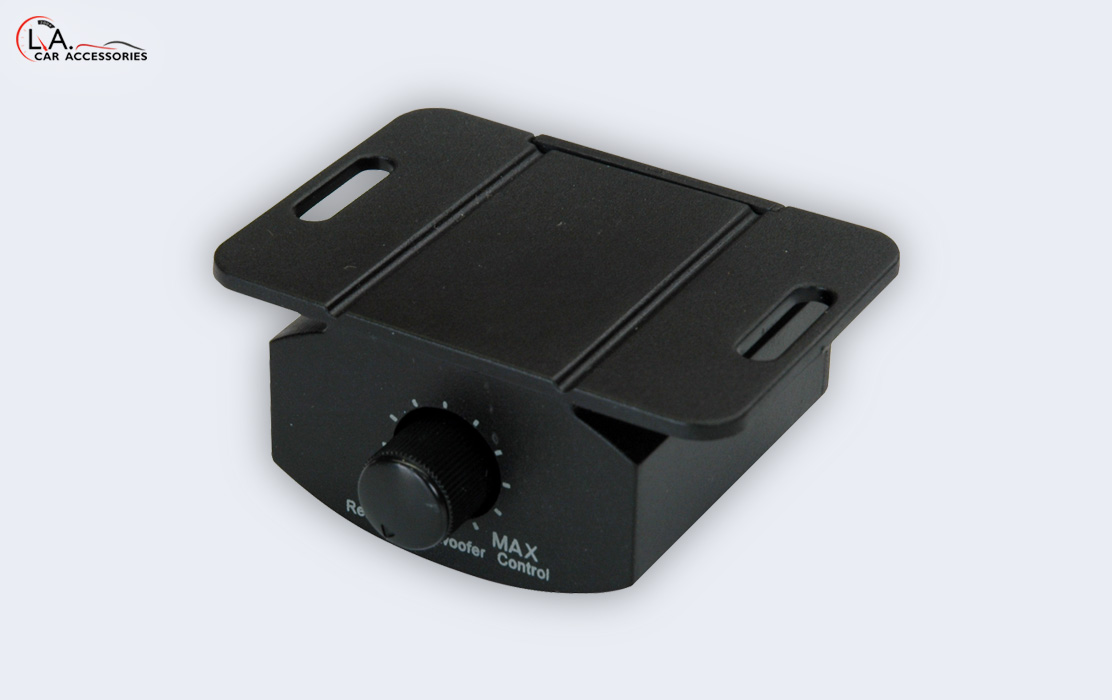

With the remote control you can customize the level of your front seat.
Built-in protection circuits shut down the amplifier in case of congestion.
Built-in fan to prevent overheating.
Can be connected in bridge mode together with a second CAD15 for 3.2 kliowatt the RMS output power.
RMS output power per channel at 13.8 volts. .
Can Handle 50 square mm (AWG0) on the DC terminal.
Number of channels 1 Amplifier
Class D output into 4 Ohms 550 W
output into 2 ohms 900 W
output power in 1 ohm 1600 W
Mono bridge mode 4 ohm N / A
damping factor> 100
S / N ratio, A-weighted> 100 dB
frequency range of 15 to 160 Hz
INPUT SENSITIVITY 0.15 – 5 V
input impedance> 10 kOhm
input impedance, high 100 ohms high pass filter 15-50 Hz / 24 dB slope
low pass filter 15-150 Hz / 24 dB slope
Phase Control for Subwoofer 0-180 degrees cont. variable
Low Level Output No
Grand Bass filter 0-18 dB @ 45 Hz
remote bass level control Yes
High-level input with auto start Yes
Yes Integrated fan power consumption (no load) 2 A
Power consumption (max) 160 A
Rec Power cable Minimum 2AWG / 33 mm2 Fuses 4 x 40
A Dimensions (W x D x H) 70 x 473 x 268 mm (2.92 x 18.62 x 10.55 cm)
Weight 6.4 kg (14.3 lb)
NOTE: Pictures are for visualization only and may vary on actual items.
