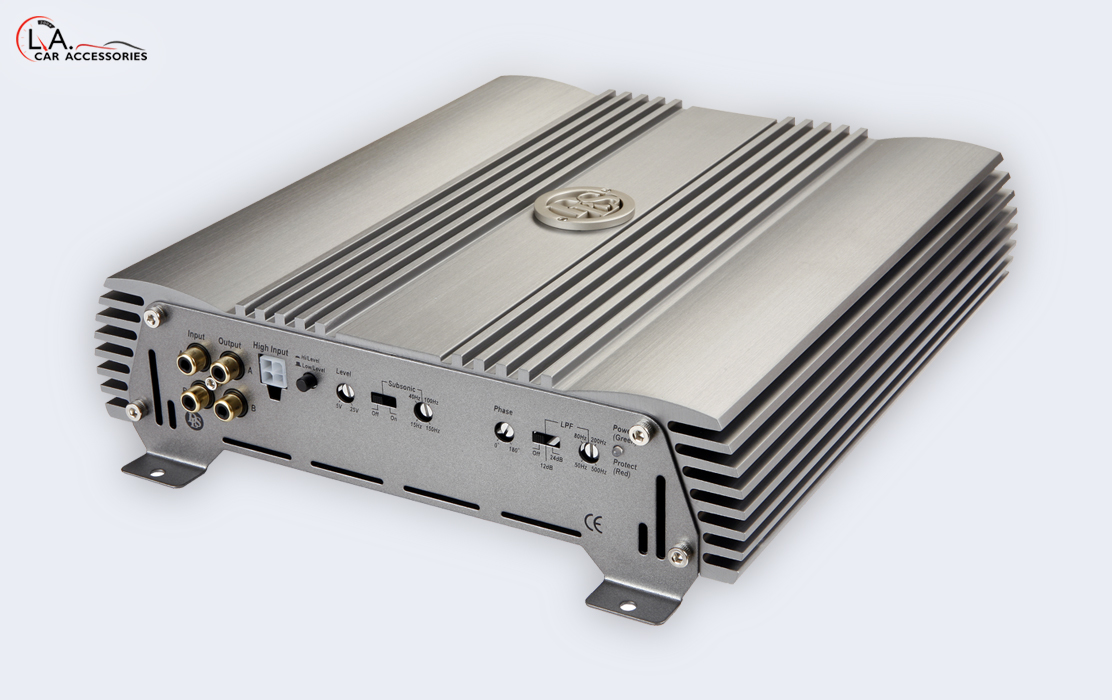

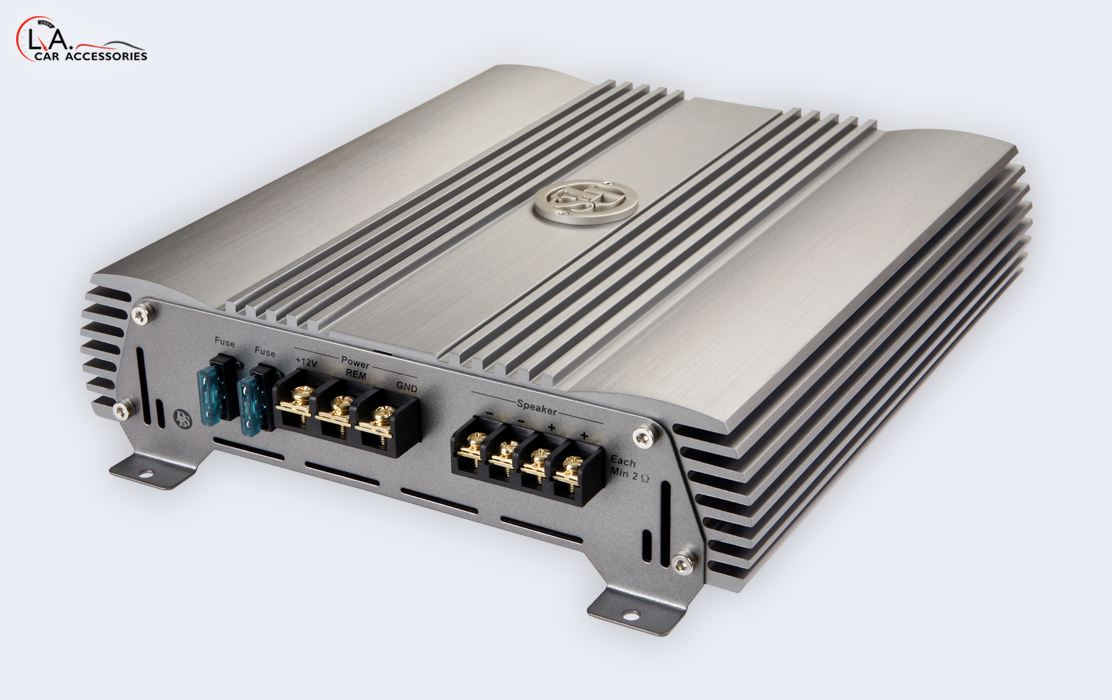

DLS CA12 1 CHANNEL MONO Car Amplifier

Php 14,100.00
CA 12 is a powerful mono amplifier with a nominal output of 220 Watts in 4 ohm, 400 Watts in 2 ohm load, and 500 Watts in 1 ohm load. - Built-in low-pass filter for subwoofers, variable between 50 and 500 Hz. - Variable subsonic filter 15-150 Hz.
INQUIRY FORM
Description

Dls Amp A4banner

Dls Ca12 1 Channel Mono3

Performance CA12 – 1 x 500 Watt RMS

CA 12 is a powerful mono amplifier with a nominal output of 220 Watts in 4 ohm, 400 Watts in 2 ohm load, and 500 Watts in 1 ohm load.

– Built-in low-pass filter for subwoofers, variable between 50 and 500 Hz.
– Variable subsonic filter 15-150 Hz.
– Continuously variable phase control 0-180 degrees.
– Built-in protection circuits shut down the amplifier in the event of overloads.
– High-level input with automatic start.
– Cooling fan in the bottom plate.
– RMS output power @ 13,8 V

This is one of our most popular mono amplifiers with high reliability.

Specifications

Number of channels
: 1
Amplifier class: AB
Output power in 4 ohm: 220 W RMS
Output power in 2 ohm: 400 W RMS
Output power in 1 ohm : 500 W RMS
Mono bridge mode 4 ohm: N/A
Damping factor: > 100
S/N ratio, A-weighted: > 100 dB
Frequency range: 10 Hz – 35 kHz
Low level output: No
Input sensitivity : 0,25 – 5 V
Input impedance : > 10 kohm
Input impedance, high level: 100 ohm
High pass filter : 15 – 150 Hz
Low pass filter : 50 – 500 Hz
Phase control for subwoofers: 0-180 degrees con. variable
High level input with auto start: Yes
Power consumption (idle) : 0,8 A
Power consumption (max) : 60 A
Rec. power cable: Minimum 5AWG / 16 mm2
Fuses: 2 x 30 A
Dimension (W x D x H): 70 x 312 x 268 mm / 2,92 x 12,28 x 10,55″
Weight :  3,8 kg / 8,4 lb

NOTE: Pictures are for visualization only and may vary on actual items.
