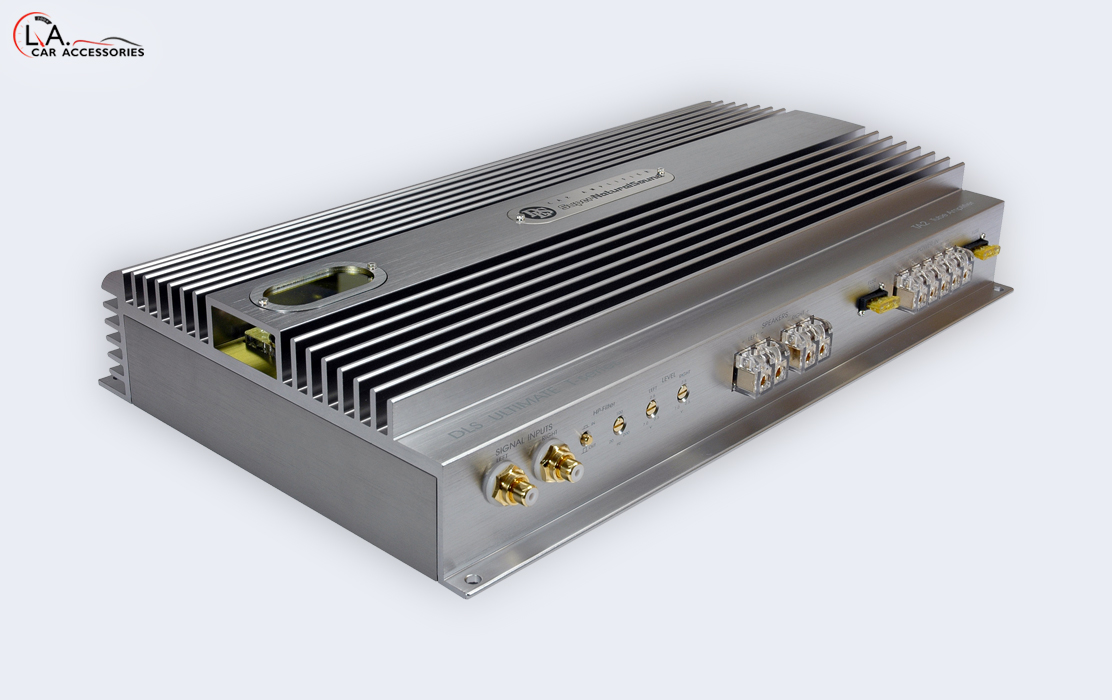

DLS AMP-TA2 Car Amplifier

Php 94,650.00
ULTIMATE series TA2 is a HiFi two-channel amplifier with 2 x 100 Watts output power. This is an extremely well-sounding amplifier for car use. We did not compromize in any section of the construction when we designed the electronic circuits.
INQUIRY FORM
Description

Dls Amp A4banner

Dls Amp Ta25 (1)

ULTIMATE series TA2 is a HiFi two-channel amplifier with 2 x 100 Watts output power. This is an extremely well-sounding amplifier for car use. We did not compromize in any section of the construction when we designed the electronic circuits.

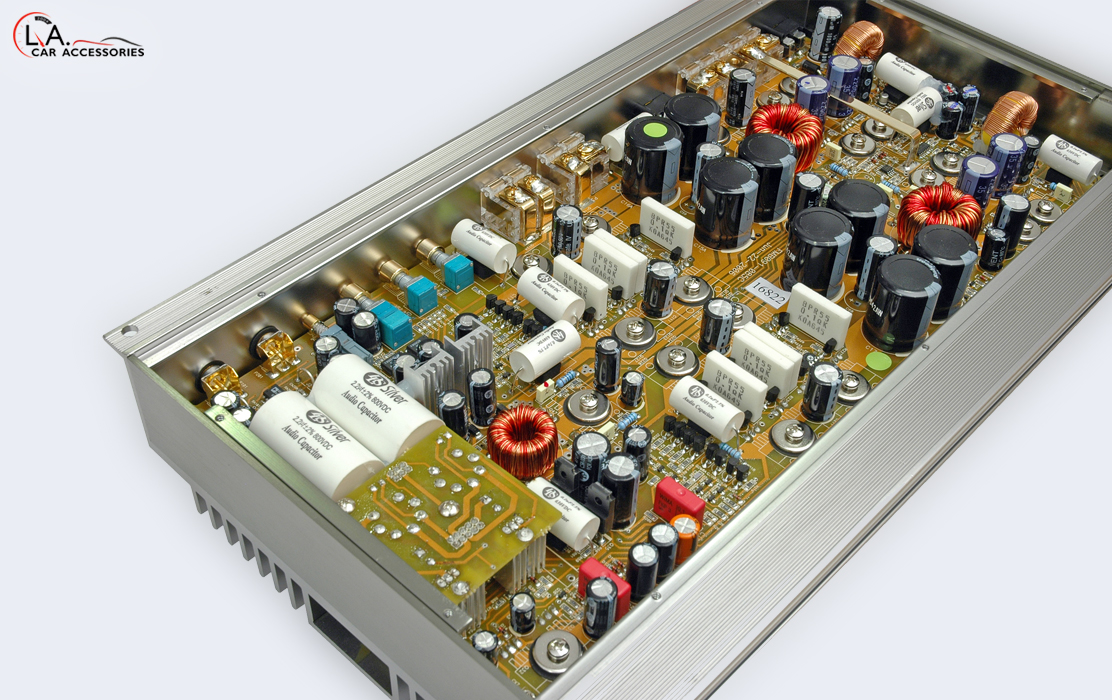

The TA2 is using the very best components in all sections of the amplifier, from the input circuitry, through the whole amplifier to the final output stage. Two pieces of CV4010 pentodes is used in the signal path. These tubes are made by VALVE Electronics in England during 1982 – 1984. The Valve Electronics company produced best sounding tubes in the tube industry before they closed. The tubes are spare parts for military equipment so they fulfil military specifications.

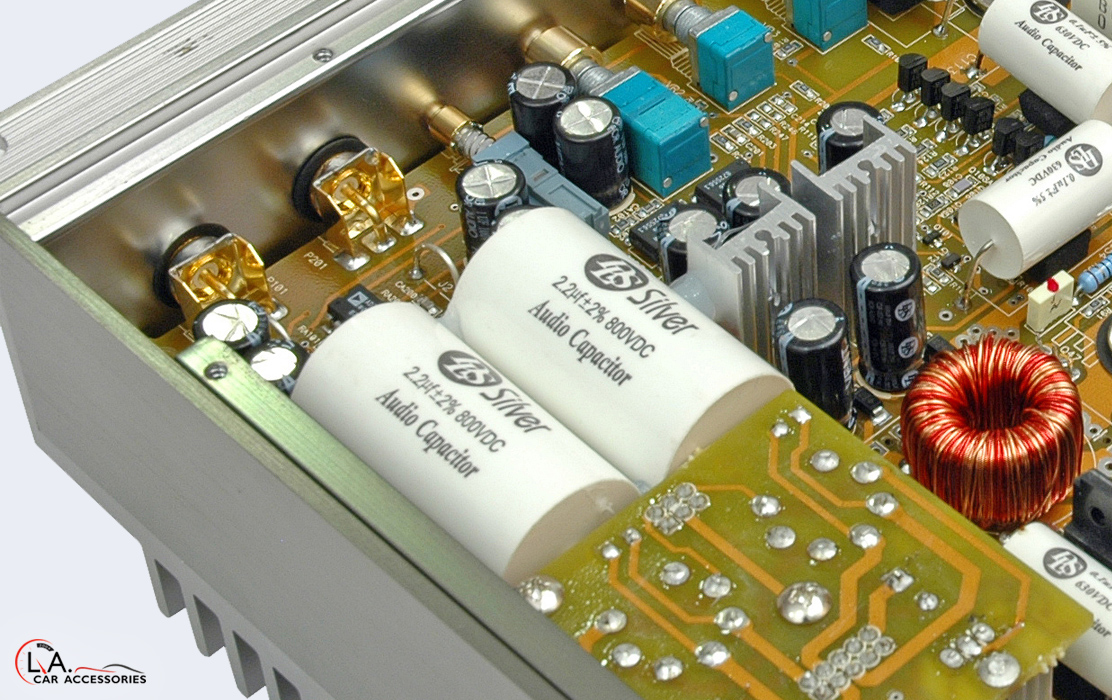

We use silver wire Capacitors in signal path and power supply for a focused sound image. Special designed DLS Audio capacitors in key points and WIMA polypropylene capacitors. Four pieces of 4700 uF on each channel for a deep and wide sound stage. Dual mono power system design plus separate power supply for tube and pre-amp stage for clear sound reproduction.

– RMS output per channel @ 13,8 volts, 20 Hz – 20 kHz , < 0,04% distortion.
Separate level controls for each channel.
Click here to study all DLS competition cars from the whole world.

TA2 amplifier in combination with Scandinavia series speakers is a winning concept. At the EMMA european finals 2009 this equipment was installed in the winning cars of Master Unlimited and Expert Unlimited One Class

Specification:

Number of channels    2
Amplifier class    AB
Mono bridge mode 4 ohm    N/A
Output power in 2 ohm    2 x 200 W RMS
Output power in 4 ohm    2 x 100 W RMS
Damping factor    >240
S/N ratio, A-weighted    >102 dB
Frequency range    10 Hz – 50 kHz
Input sensitivity    0,5 – 7V
Input impedance    > 10 kohm
Input impedance, high level    N/A
High pass filter    20 – 200 Hz, 12 dB slope
Low level output    No
High level input with auto start    No
Dual DC inputs    Yes
Power consumption (idle)    1,5 A
Power consumption (max)    40 A
Dimension (W x D x H)    410 x 240 x 73 mm (16,15 x 9,45 x 2,87 inch)
Rec. power cable    Minimum 5AWG / 16 mm2 for each channel / kanal
Fuses    2 x 20 A
Article number(s)

10-34020
