DLS AMP-RM40 Car Amplifier

Php 18,650.00
Number of channels 4 Amplifier class AB Mono bridge mode 4 ohm 2 x 150 W RMS (2 x 175W @14,4V, 1% THD) Output power in 2 ohm 4 x 75 W RMS (4 x 100W @14,4V, 1% THD) Output power in 4 ohm 4 x 55 W RMS (4 x 70W @14,4V, 1% THD)
INQUIRY FORM
Description

Dls Amp A4banner

Dls Amp Rm405

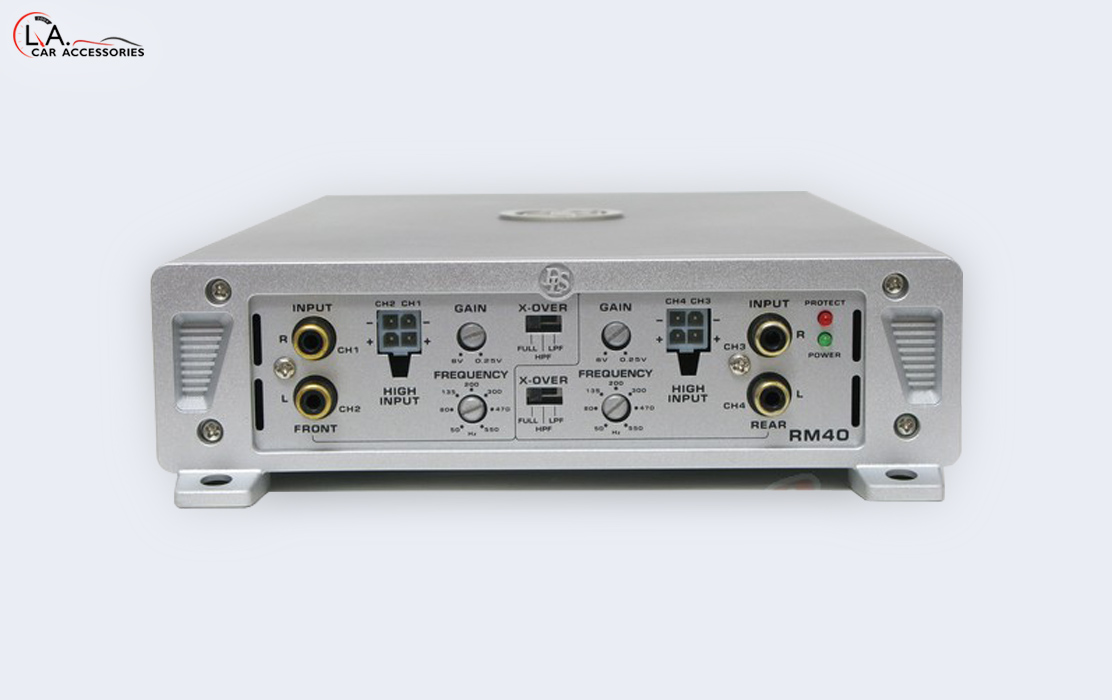

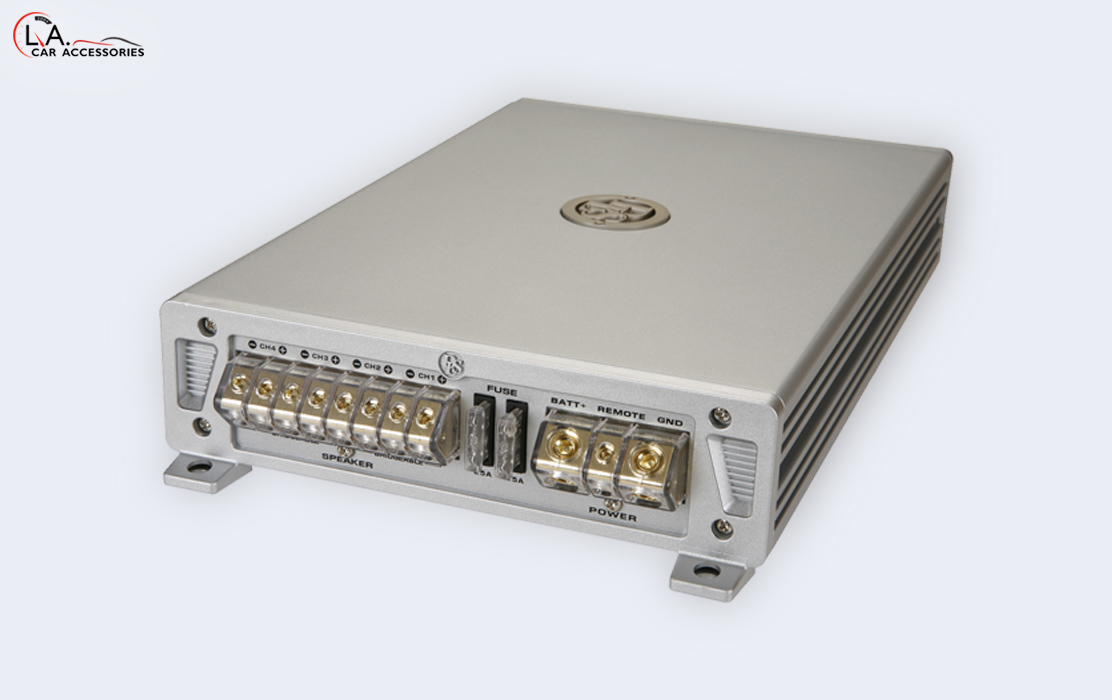

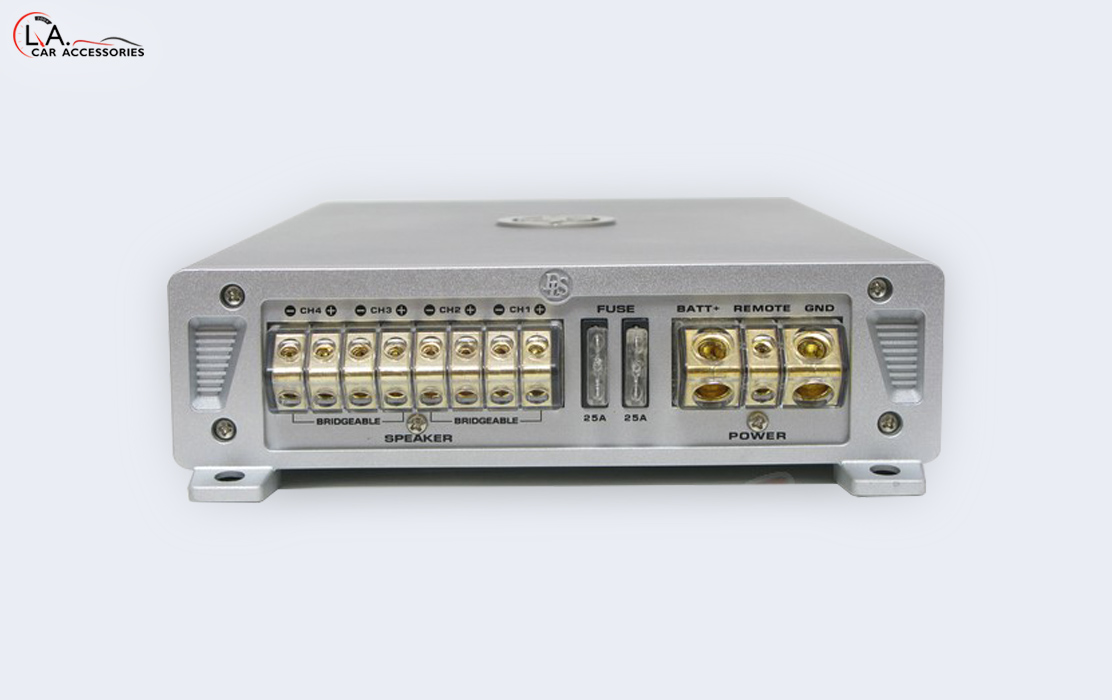

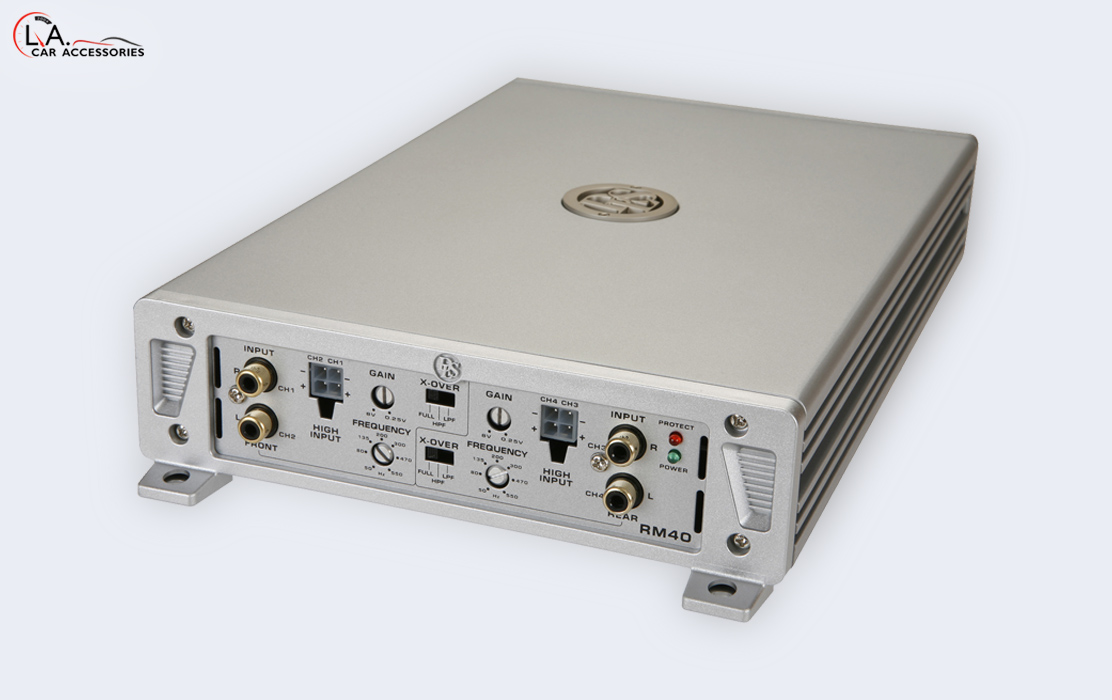

DLS New Reference Mini Amplifier RM40

REFERENCE series RM40 is a 4-channel amplifier. Provides a power output of 4 x 75 Watts in 2 ohm stereo load, and 2 x 150 Watts in 4 ohm mono bridge-connection.

– Built-in variable 50-500 Hz switchable low pass filter for subwoofers.
– Built-in/switchable variable 50-500 Hz high pass filter that can be used as a subsonic filter or high-pass filter for front systems.
– High level input with automatic start.
– RMS output power at 13,6 volt DC feed. Max 0,1% distorsion @ 20 Hz – 20 kHz

Specifications

  • Number of channels    4
  • Amplifier class    AB
  • Mono bridge mode 4 ohm    2 x 150 W RMS (2 x 175W @14,4V, 1% THD)
  • Output power in 2 ohm    4 x 75 W RMS (4 x 100W @14,4V, 1% THD)
  • Output power in 4 ohm    4 x 55 W RMS (4 x 70W @14,4V, 1% THD)
  • Damping factor    > 100
  • S/N ratio, A-weighted    > 100 dB
  • Frequency range    10 Hz – 35 kHz
  • Input sensitivity    0,25 – 8 V
  • Input impedance    > 47 kohm
  • Input impedance, high level    220 ohm
    Filters channel A & B    HP: 50 – 500 Hz, LP: 50 – 500 Hz
  • Filters channel C & D    HP: 50 – 150 Hz, LP: 50 – 500 Hz
  • Remote bass level control    No
  • Low level output    No
  • High level input with auto start    Yes
    Remote phase shift control    No
  • Power consumption (idle)    0,75 A
  • Power consumption (max)    50 A
  • Rec. power cable    Minimum 4AWG / 21 mm2
  • Fuses    2 x 25 A
  • Dimension (W x D x H)    189 x 312 x 55 mm (7,44 x 12,3 x 2,16 “)
  • Weight    2,9 kg ( 6,4 lb)

NOTE: Pictures are for visualization only and may vary on actual items.
