DLS AMP-RM15 Car Amplifier

Php 16,950.00
REFERENCE series RM15 is a mono amplifier rated at 340 Watts in 2 ohm load. Powerful mono amplifier with full control for one or two subwoofers. Specifications Number of channels 1 Amplifier class AB Mono bridge mode 4 ohm N/A Output power
INQUIRY FORM
Description

Dls Amp A4banner

Dls Rm15 Car Hifi Endstufe Mono 27409

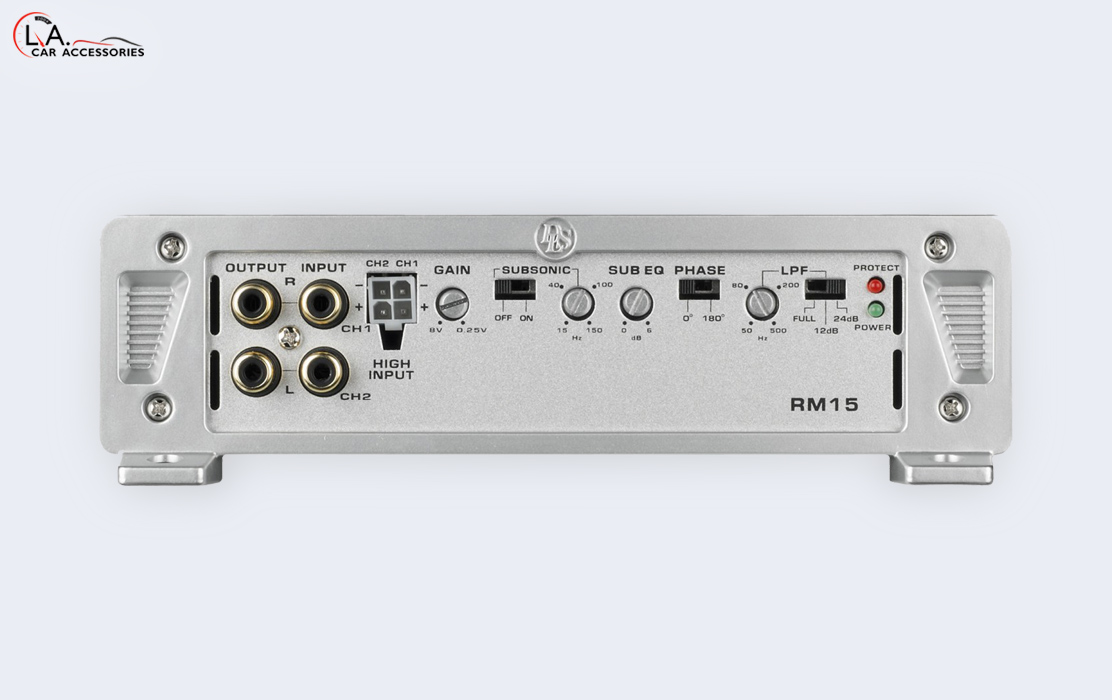

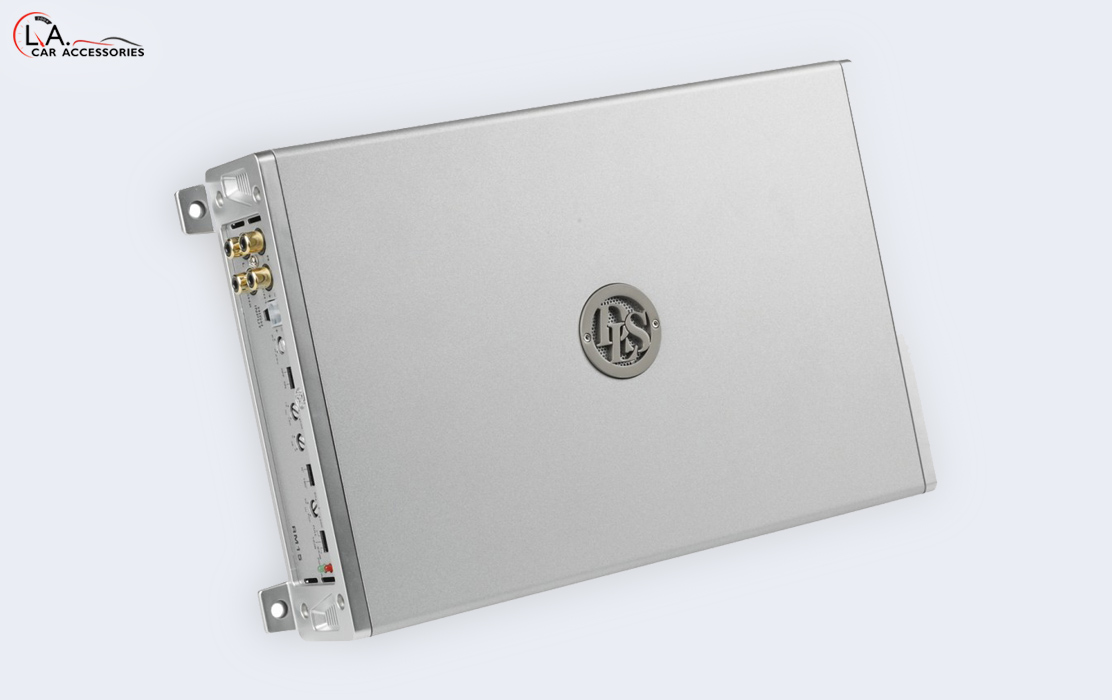

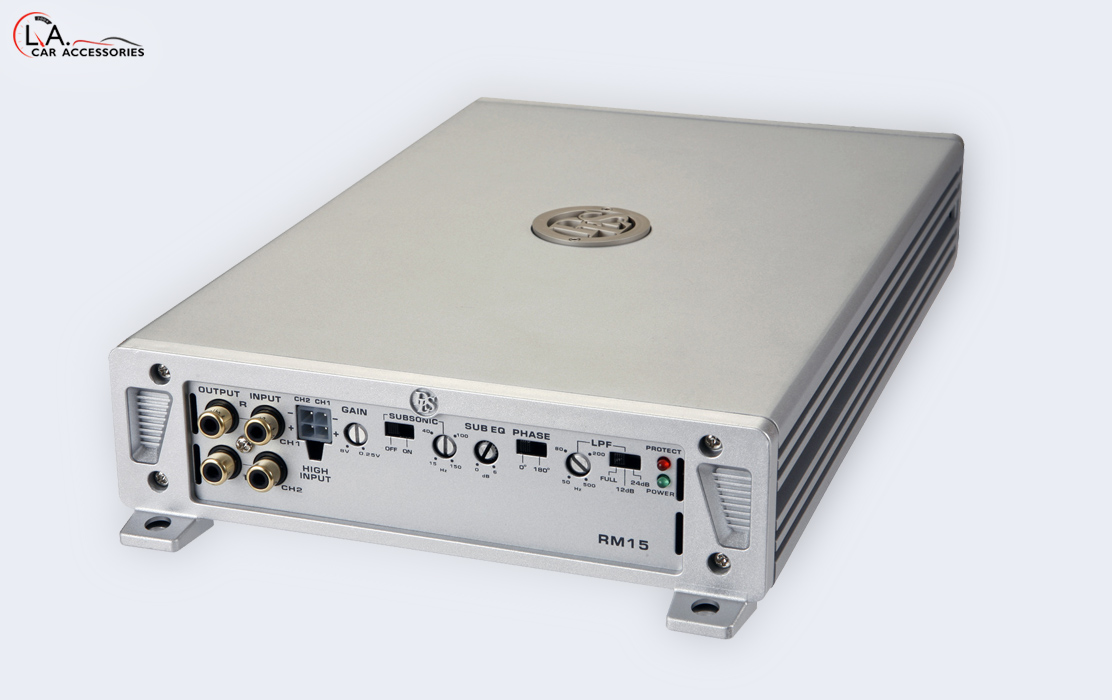

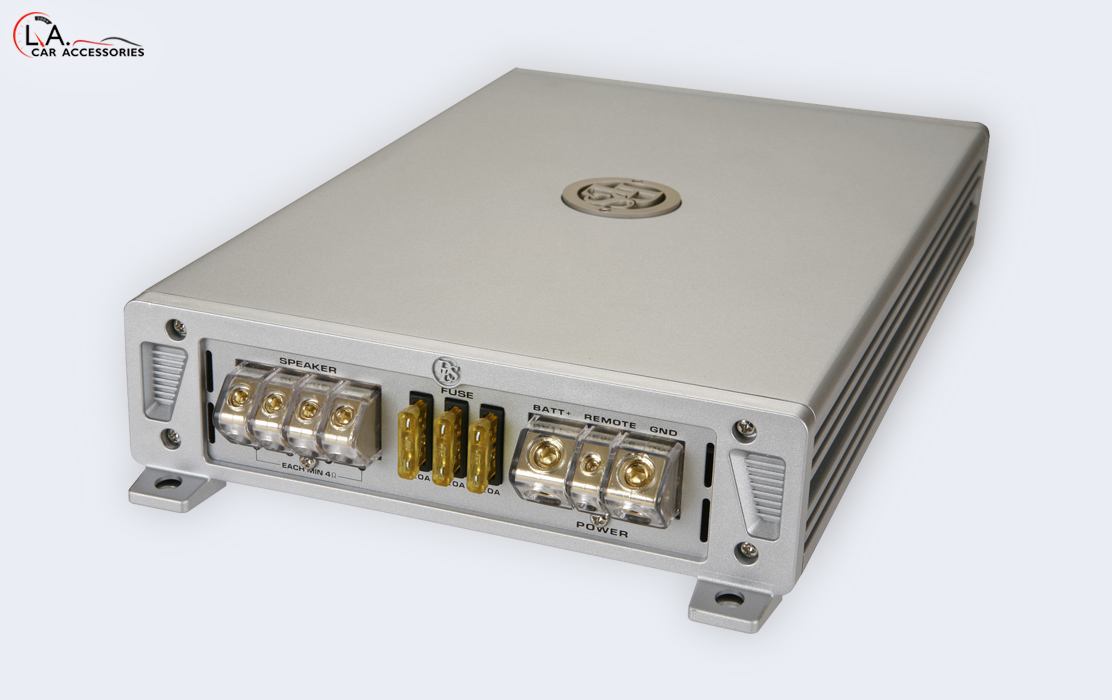

REFERENCE series RM15 is a mono amplifier rated at 340 Watts in 2 ohm load. Powerful mono amplifier with full control for one or two subwoofers.

Specifications
Number of channels    1
Amplifier class    AB
Mono bridge mode 4 ohm    N/A
Output power in 2 ohm    340 W RMS (450 W @14,4V, 1%THD, CEA2006)
Output power in 4 ohm    200 W RMS (290 W@14,4V, 1% THD, CEA2006)
Damping factor    > 100
S/N ratio, A-weighted    > 100 dB
Frequency range    10 Hz – 35 kHz
Input sensitivity    0,25 – 8 V
Low level output    Yes
Input impedance    > 47 kohm
Input impedance, high level    220 ohm
Phase control for subwoofers    0-180 degrees variable
High pass filter    15 – 150 Hz variable
Low pass filter    50-500 Hz / 12 db slope
Grand bass filter    SUB EQ 0-6 dB @ 40 Hz
High level input with auto start    Yes
Remote phase shift control    No
Remote bass level control    No
Integrated fan    Yes
Power consumption (idle)    0,7A
Power consumption (max)    60 A
Rec. power cable    Minimum 4AWG / 21 mm2
Fuses    3 x 20 A
Dimension (W x D x H)    189 x 312 x 55 mm (7,44 x 12,3 x 2,16 inch)
Weight    2,9 kg ( 6,4 lb)

NOTE: Pictures are for visualization only and may very on actual items.
