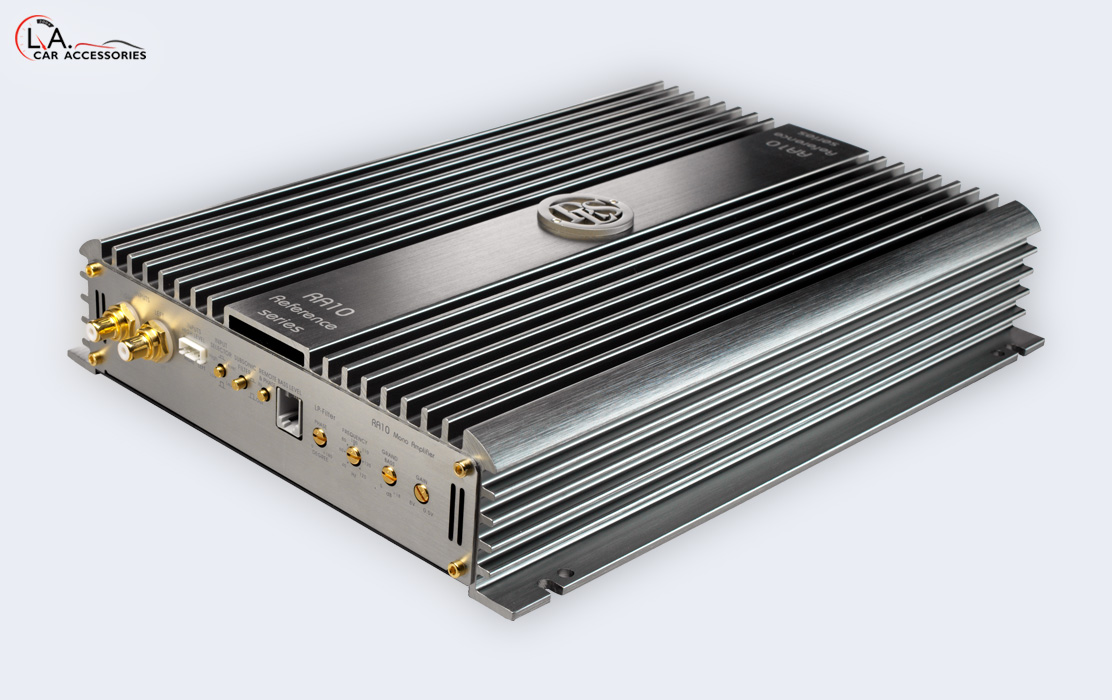

DLS AMP-RA10 Car Amplifier

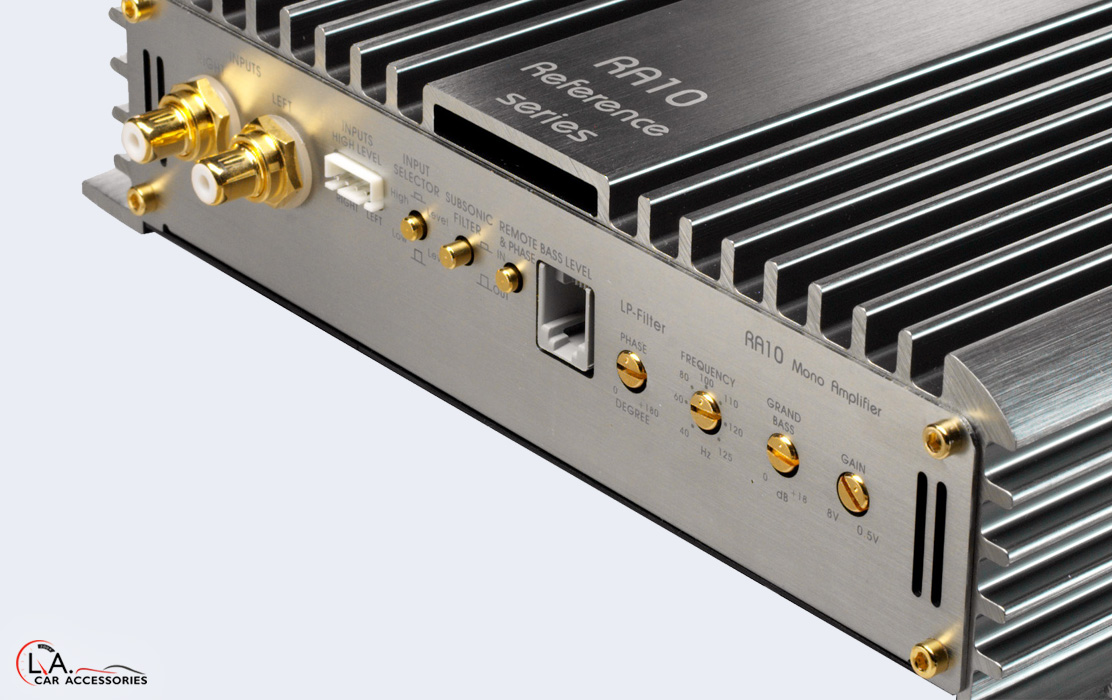

– Built-in variable 40-125 Hz low-pass filter and 25 Hz subsonic filter.
– Grand bass 0-18 dB.
– Phase shift control.
– High level input with automatic start.

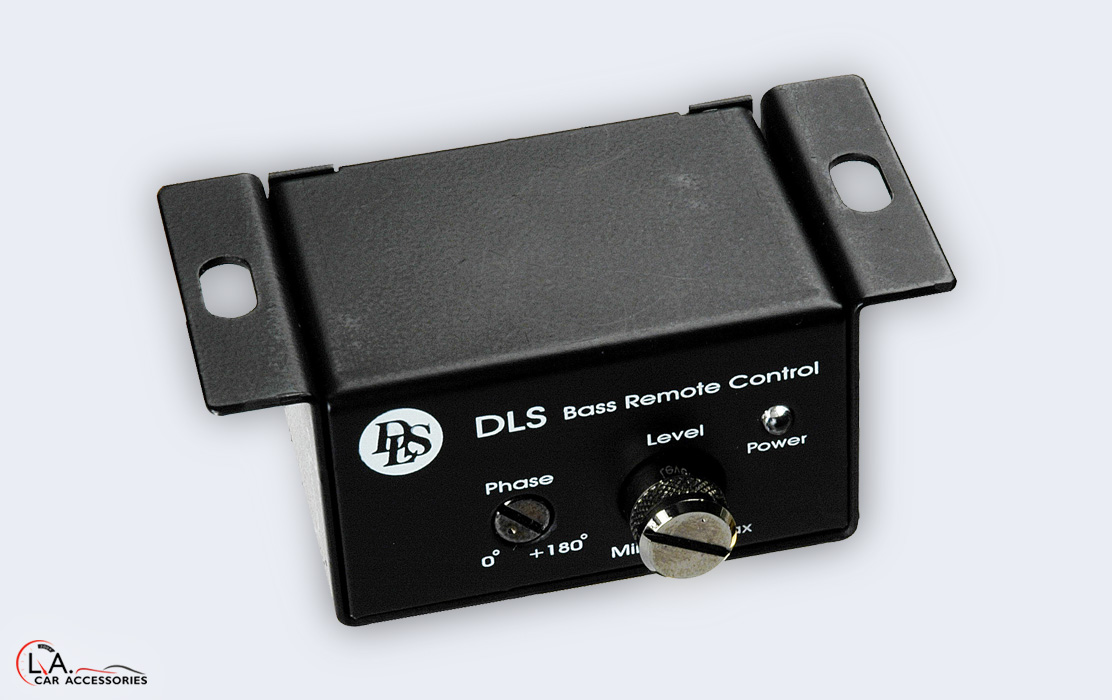

– Remote bass level and phase control unit is included.
– Built-in cooling fan.
– RMS output at 13,8 volts , < 0,1% distortion.
SPECIFICATIONS:
Number of channels 1
Amplifier class AB
Mono bridge mode 4 ohm N/A
Output power in 1 ohm 780 W RMS
Output power in 2 ohm 500 W RMS
Output power in 4 ohm 300 W RMS
Damping factor > 200
S/N ratio, A-weighted > 100 dB
Frequency range 10 Hz – 125 Hz
Input sensitivity 0,5 – 8 V
Low level output No
Input impedance > 10 kohm
Input impedance, high level 330 ohm
Phase control for subwoofers 0-180 degrees variable
High pass filter Subsonic 25 Hz / 18 dB slope
Low pass filter 40-125 Hz / 12 db slope
Grand bass filter 0-18 dB @ 40 Hz
High level input with auto start Yes
Remote phase shift control Yes
Remote bass level control Yes
Integrated fan Yes
Power consumption (idle) 0,6A
Power consumption (max) 120 A
Rec. power cable Minimum 2AWG / 33 mm2

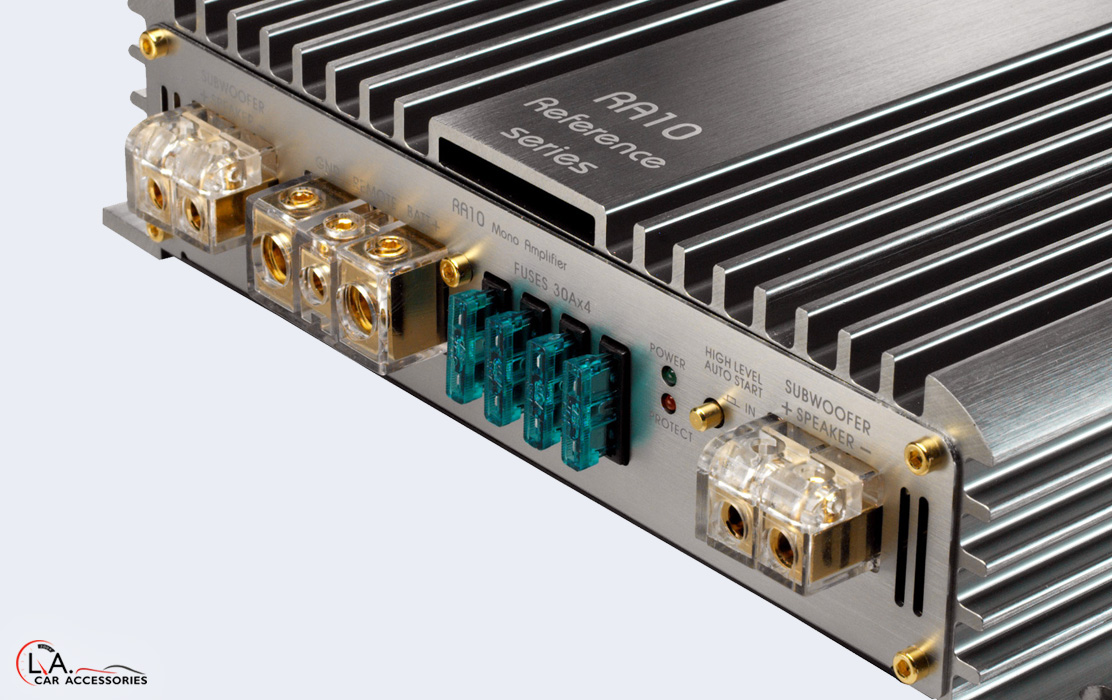

Fuses 4 x 30 A
Dimension (W x D x H) 359 x 245 x 59 mm (14,1 x 9,65 x 2,33 inch)
Weight 4,3 kg ( 9,5 lb)
Article number(s)
10-32010
