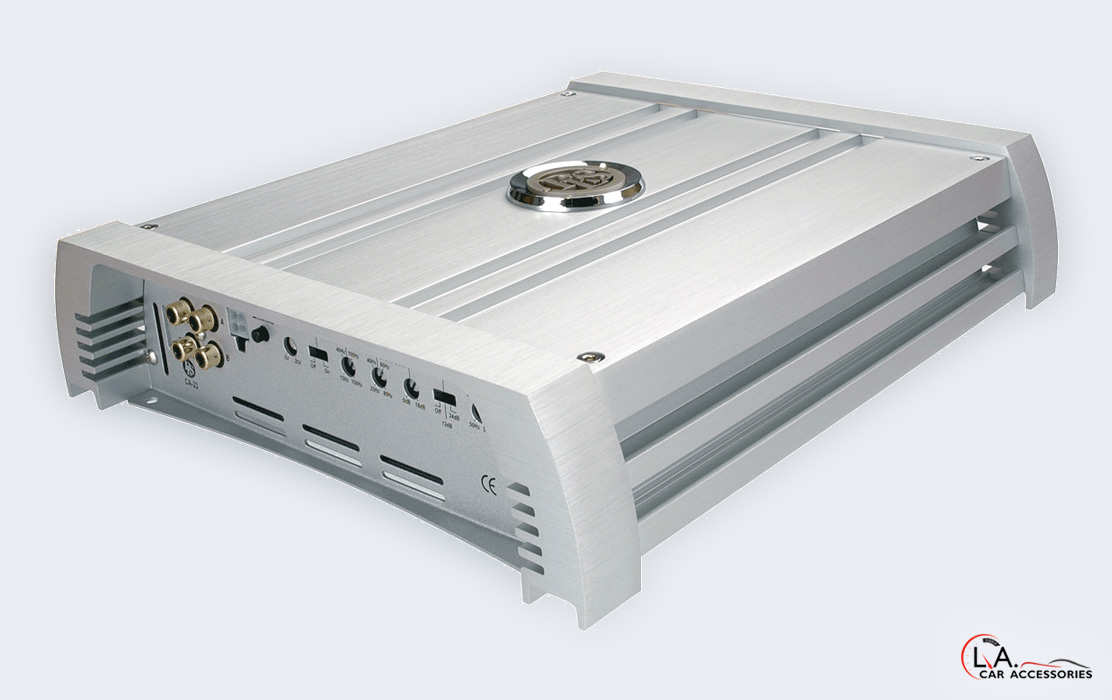

DLS AMP-CA23 Car Amplifier
CA 23 is a powerful amplifier with a power output of 2 x 135 Watts.
With a mono bridge-connection, it puts out all of 400 Watts, ideal for subwoofer use.

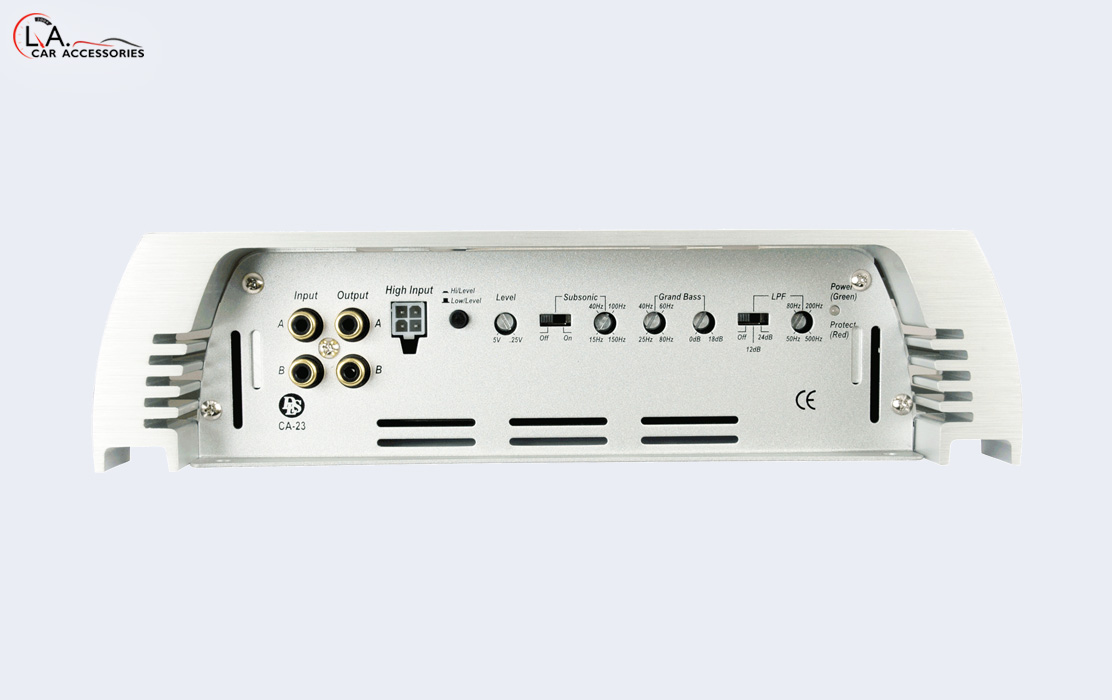

– Built-in low pass filter for subwoofers, variable between 50 and 500 Hz.
– High pass / subsonic filter 15 – 150 Hz
– Bass boost control from 25 Hz – 80 Hz, 0-18 dB.
– Built-in protection circuits shut down the amplifier in the event of overloads.
– High level input with automatic start.
– RMS output power @ 13,8 V, 20Hz – 20 kHz
Specifications
Number of channels 2
Amplifier class AB
Mono bridge mode 4 ohm 400 W RMS
Output power in 2 ohm 2 x 200 W RMS
Output power in 4 ohm 2 x 135 W RMS
Damping factor >100
S/N ratio, A-weighted >100 dB
Frequency range 10 Hz – 35 kHz
Input sensitivity 0,25 – 5 V
Input impedance > 10 kohm
Input impedance, high level 100 ohm
High pass filter 15 – 150 Hz
Low pass filter 50 – 500 Hz
Grand bass filter 25 – 80 Hz, 0-18 dB
Low level output Yes
High level input with auto start Yes
Power consumption (idle) 0,7 A
Power consumption (max) 60 A
Rec. power cable Minimum 5AWG / 16 mm2
Dimension (W x D x H) 70 x 312 x 268 mm (2,92 x 12,28 x 10,55 inch)

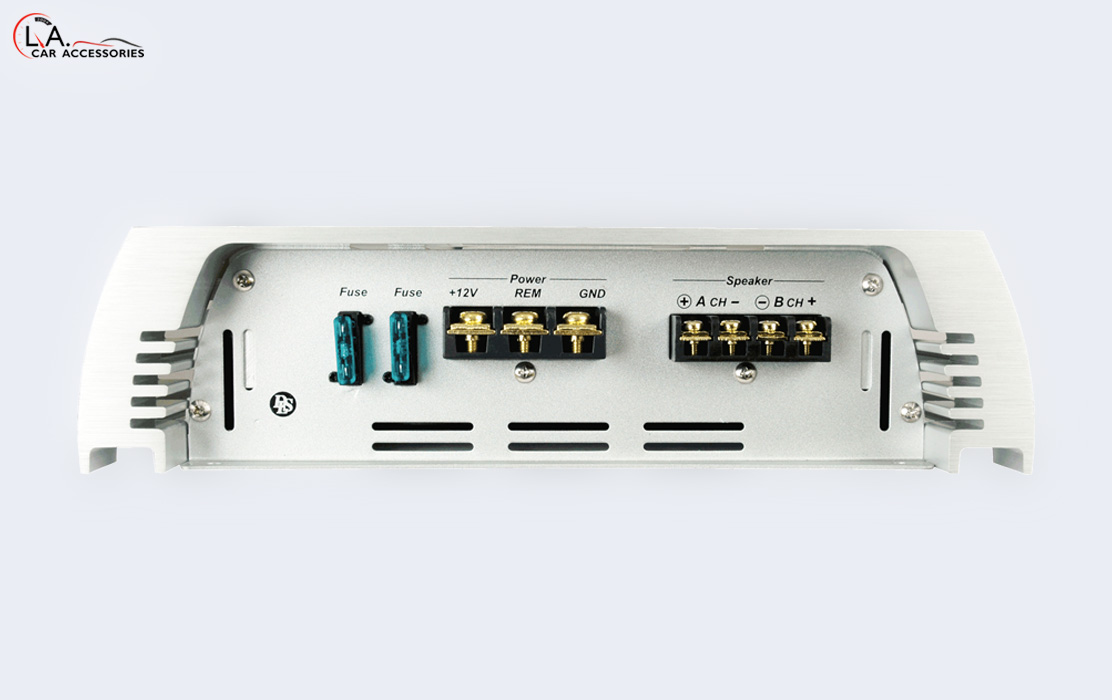

Fuses 2 x 30 A
Weight 3,6 kg ( 7,9 lb)
Article number(s)
10-30223
NOTE: Pictures are for visualization only and may vary on actual items.
