DLS AMP-A7 Car Amplifier

Php 53,600.00
DLS ULTIMATE A7 - The Big Five 5-channel amplifier ULTIMATE series A7 Five-channel amplifier rated at 4 x 60 Watt stereo channels plus 1 x 300 Watts from the mono sub channel. Build an entire entertainment system in your car system with all necessary crossovers, all of which provide in an amplifier.
INQUIRY FORM
Description

Dls Amp A4banner

Dlsa71

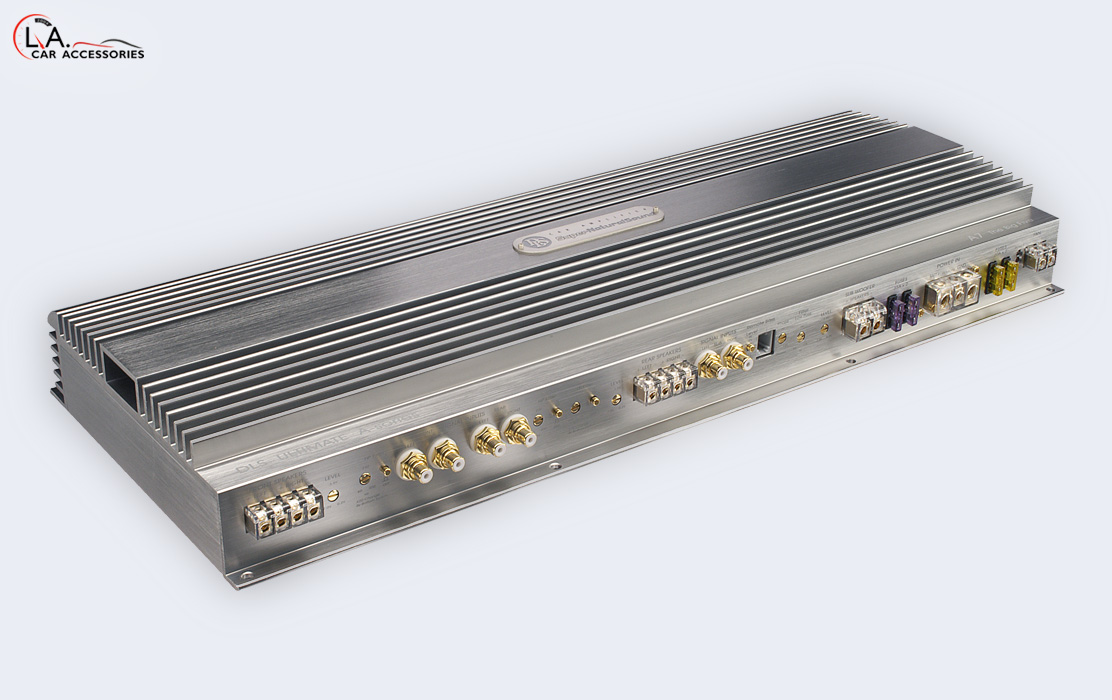

DLS ULTIMATE A7 – The Big Five 5-channel amplifier ULTIMATE series A7 Five-channel amplifier rated at 4 x 60 Watt stereo channels plus 1 x 300 Watts from the mono sub channel. Build an entire entertainment system in your car system with all necessary crossovers, all of which provide in an amplifier. For detailed information about the crossover possibilities related to read the technical specifications.
Internal switches connects all amplifier inputs if you only want to use an RCA cable. Built-in fan control.

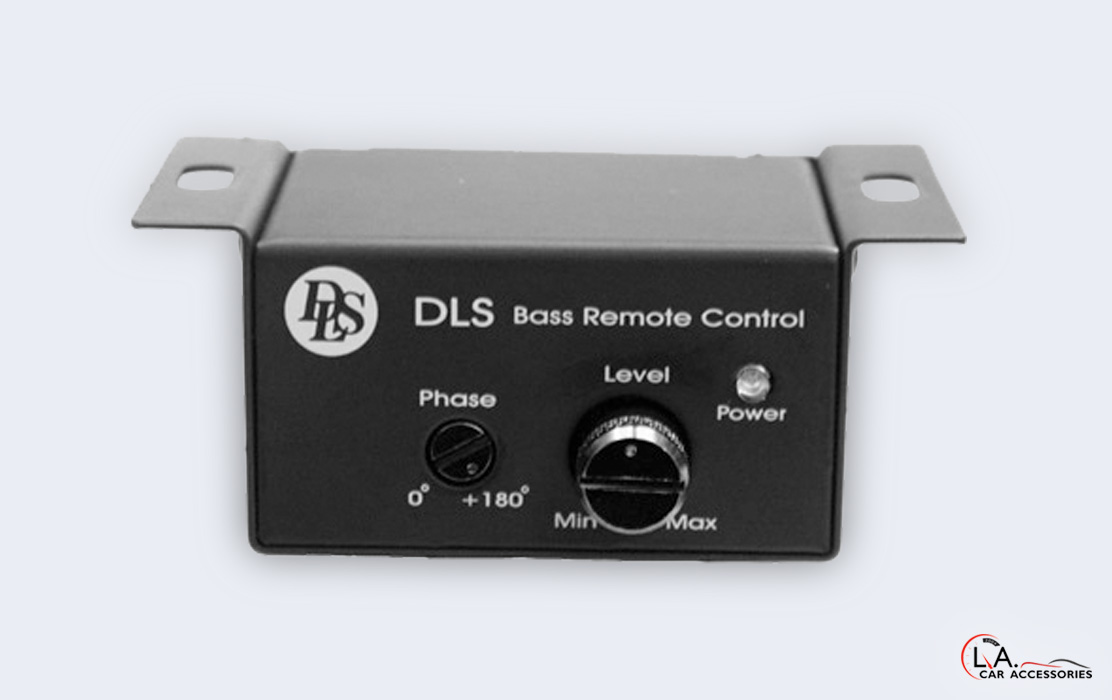

Remote Sub-level with adjustable phase shift is included.
RMS output power per channel at 13.8 volts, 20 Hz – 20 kHz, <0.1% THD.

Specifications:

Number of Channels 5

output into 4 ohm 4 x 60 W output into 2 ohms 4 x 100 W
Mono bridge mode 4 ohm 2 x 200 W
Mono sub channel 4 ohm 300 W
Mono sub channel 2 ohm 440 W mono sub channel output in 1 ohm 600 W
frequency range 10 Hz – 50 kHz
damping factor> 200
S / N ratio, A-> 100 dB
Low Level Output No
input impedance, high N / A
High-level input with auto start no.
Input sensitivity 0,3 – 7 V
input impedance> 10 kOhm
Filter channel A & B HP: 80 to 400 Hz / 1,6 – 8 kHz (x20)
Filter channel C & D HP: 80 to 400 Hz LP: 0.3 – kHz 4 / 3 to 40 kHz (x10)
External fan Terminal Yes
remote bass level control Yes
Remote Control Yes Phase shift
power consumption (standby) 1.1 A
Power consumption (max) 120 A
Rec Power cable Minimum 4AWG / 21 mm2 Fuses
2 x 35 A + 2 x 20 A
Dimensions (W x D x H) 605 x 240 x 73 mm (23.82 x 9.45 x 2.87 inch)
Weight 8.1 kg (17.86 lb)

NOTE: Pictures are for visualization only and may vary on actual items.
