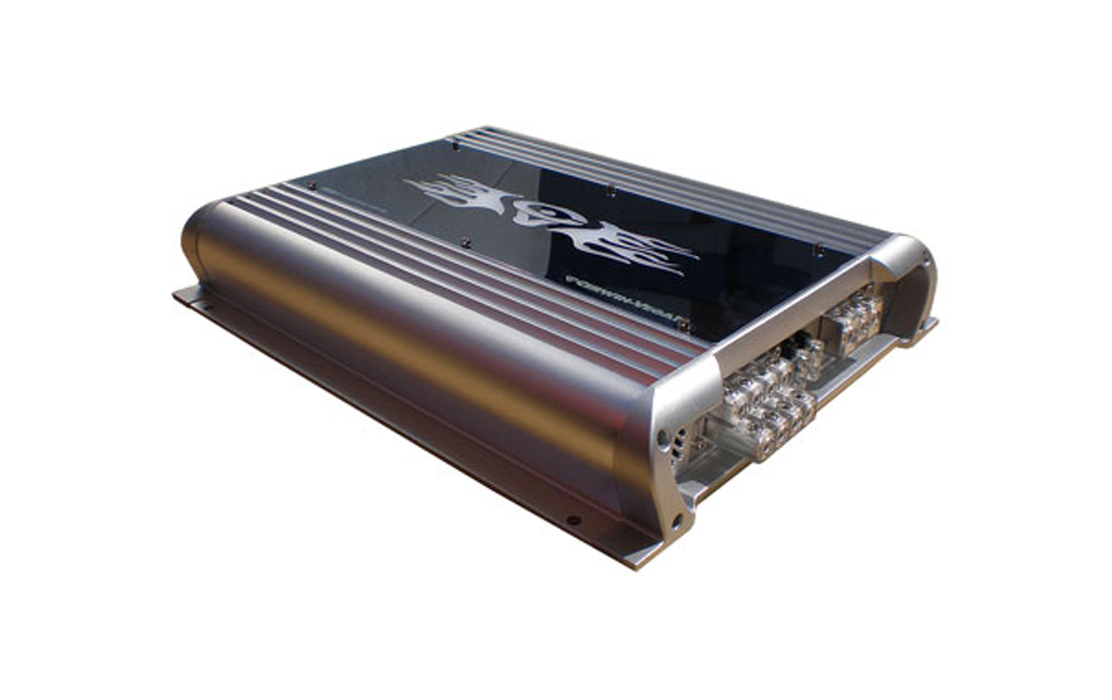

Cerwin Vega XL Series 300.4 Car Amplifier

Php 11,500.00
XL amplifiers use an unregulated MOSFET power supply for superior control of power. A toroid-coil transformer yields maximum power transfer with minimum losses. Careful attention to circuit design keeps RFI at low levels, so you won't hear unwanted noise.
INQUIRY FORM

  • 4 Channel 300 watt power amplifier
  • RMS Power rating: 75 watts x 4 chan. at 2 ohms
  • RMS Power rating: 50 watts x 4 chan. at 4 ohms
  • Bridged RMS Power rating: 150 watts x 2 chan. at 4 ohms
  • Low and High level inputs
  • MOSFET PWM Supply
  • Built in crossover: HPF: 50 – 250Hz, LPF: 50 – 250Hz
  • Gain controls
  • 2 Bass boost controls for channels 1&2, 3&4: Of.Off Switch
  • Thermal protection
  • Short circuit protection
  • Remote turn-on
  • Protection LED indicator
  • Power on LED indicator
  • Dimensions: 2-1/4″ H x 10-1/2″ W x 13-1/4″ L



  1. Power Specifications – Full Range Channels

RMS Power @ 4 ohms

50 watts x 4 channels

RMS Power @ 2 ohms

75 watts x 4 channels

RMS Power @ 1 ohm

Not Stable

Bridged RMS Power

150 watts x 2 channels

  1. Power Specifications – Subwoofer Channel

RMS Power @ 4 ohms

RMS Power @ 2 ohms

RMS Power @ 1 ohm

  1. Power Specifications – Full Range Channels

Peak Power @ 4 ohms

Peak Power @ 2 ohms

Peak Power @ 1 ohm

Bridged Peak/Max Power

  1. Power Specifications – Subwoofer Channel

Peak Power @ 4 ohm

Peak Power @ 2 ohms

Peak Power @ 1 ohm

  1. Amplifier Specifications

Amplifier Series

Amplifier Class

Number of Channels

4

Total Peak Power Output

Total RMS Power Output

300 watts

Maximum Input Gauge Size

Minimum Impedance Unbridged

2 ohms

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Yes

Preamp Outputs

No

High-Pass Crossover Frequency

Low-Pass Crossover Frequency

Subsonic Filter

Signal-to-Noise Ratio

85 dB

Channel Separation

Bass Boost

On/Off Switch

Bass/Gain Remote

Fan Cooled

No

Fuse Rating

25A x 2

Total Fuse Rating

Strappable

CEA-2006 Compliant

Sonic Certified Amplifier

Amp Bluetooth Connectivity

Hi-Res Certified

  1. Authorized Dealer

Authorized Dealer

  1. What is in the box?

WITB: Amplifiers

Other Accessory #1

Other Accessory #2

Other Accessory #3

Other Accessory #4

Other Accessory #5

Paperwork
